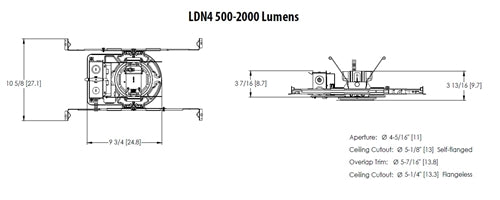

Home > Lithonia Lighting > Lithonia LDN4 30/15 MVOLT GZ10 HSG 4" Round Downlight, 3000K, 1500 Lumens, 120-277V, 0-10V Driver Dims to 10%, Housing Only
Lithonia LDN4 30/15 MVOLT GZ10 HSG 4" Round Downlight, 3000K, 1500 Lumens, 120-277V, 0-10V Driver Dims to 10%, Housing Only
Lithonia LDN4 30/15 MVOLT GZ10 HSG 4" Round Downlight, 3000K, 1500 Lumens, 120-277V, 0-10V Driver Dims to 10%, Housing Only
Regular price
Price:
$147.36
Regular price
Price:
Sale price
$147.36
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION
Galvanized steel mounting/plaster frame; galvanized steel junction box with bottomhinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment.
Two combination 1/2"-3/4" and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out).
No. 12 AWG conductors, rated for 90 degreesC.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25 degreesC standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS
LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55 degrees cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
UGR -- UGR is zero for fixtures aimed at nadir with a cut-off equeal to or less than 60deg per CIE 117-1996
Discomfort Galre in Interior Lighting. UGR FAQs
ELECTRICAL
Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LUMEN MAINTENANCE
70% lumen maintenance at 60,000 hours.
LISTINGS
Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated.
Drivers are ROHS compliant
GOVERNMENT PROCUREMENT
BAA -- Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.\
WARRANTY
5-year limited warranty
INTENDED USE
Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION
Galvanized steel mounting/plaster frame; galvanized steel junction box with bottomhinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment.
Two combination 1/2"-3/4" and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out).
No. 12 AWG conductors, rated for 90 degreesC.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25 degreesC standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS
LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55 degrees cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
UGR -- UGR is zero for fixtures aimed at nadir with a cut-off equeal to or less than 60deg per CIE 117-1996
Discomfort Galre in Interior Lighting. UGR FAQs
ELECTRICAL
Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LUMEN MAINTENANCE
70% lumen maintenance at 60,000 hours.
LISTINGS
Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated.
Drivers are ROHS compliant
GOVERNMENT PROCUREMENT
BAA -- Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.\
WARRANTY
5-year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
