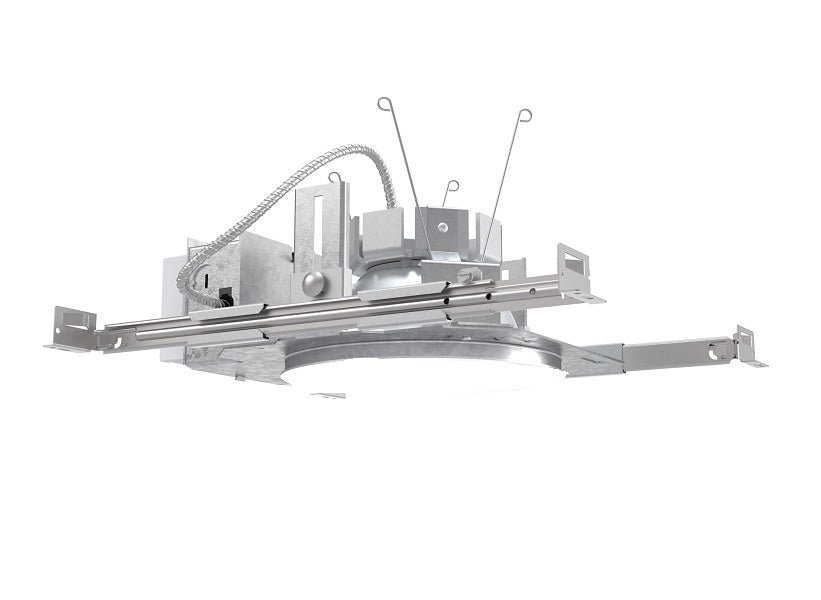

Lithonia LDN6 ALO2 SWW1 MVOLT UGZ HSG 6 Inch Non-IC Round Downlight LED, 1000/1500/2000 Lumens, 3000K-3500K-4000K-5000K Color Temperature, 120-277V, Universal Dimming to 10%, Housing Only
Lithonia LDN6 ALO2 SWW1 MVOLT UGZ HSG 6 Inch Non-IC Round Downlight LED, 1000/1500/2000 Lumens, 3000K-3500K-4000K-5000K Color Temperature, 120-277V, Universal Dimming to 10%, Housing Only
Regular price
Price:
$125.74
Regular price
Price:
Sale price
$125.74
Unit price
per
MODEL: Lithonia-LDN6-1069482
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs. Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination 1/2"-3/4 and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90 degreeC.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard. Light engine and drivers are accessible from above or below ceiling.
Ceiling thickness range 1/2" to 1-1/2".
OPTICS -- 55 degree cutoff
1.0 S/MH standard (wallwash reflector available)
80CRI standard (90CRI optional)
ELECTRICAL -- Adjustable lumen output with three module options.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% min dimming level). DALI driver dimming to 1% also available
100LPW typical
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V.
L80 @ 60,000 hours
3 SDCM
LISTINGS -- Certified to US and Canadian safety standards. Title 24 compliant (90CRI, up to 1000lm)
Wet location, covered ceiling. Wallwash suitable for damp locations only. .
WARRANTY -- 5-year limited warranty.
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs. Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination 1/2"-3/4 and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90 degreeC.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard. Light engine and drivers are accessible from above or below ceiling.
Ceiling thickness range 1/2" to 1-1/2".
OPTICS -- 55 degree cutoff
1.0 S/MH standard (wallwash reflector available)
80CRI standard (90CRI optional)
ELECTRICAL -- Adjustable lumen output with three module options.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% min dimming level). DALI driver dimming to 1% also available
100LPW typical
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V.
L80 @ 60,000 hours
3 SDCM
LISTINGS -- Certified to US and Canadian safety standards. Title 24 compliant (90CRI, up to 1000lm)
Wet location, covered ceiling. Wallwash suitable for damp locations only. .
WARRANTY -- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
