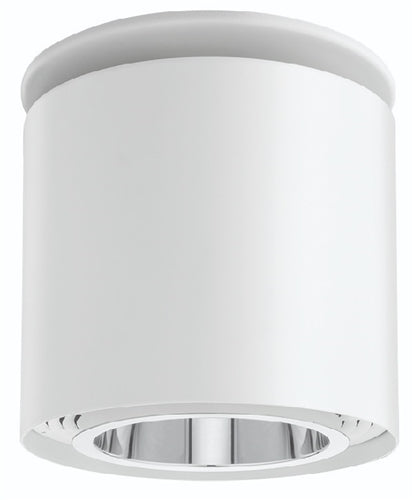

Lithonia LDN6CYL 27/30 LO6WR MVOLT GZ10 PM DWHG 6" Non-IC LED Cylinder Light, 2700K, 3000 Lumens, White Downlight Trim, 120-277V,
Lithonia LDN6CYL 27/30 LO6WR MVOLT GZ10 PM DWHG 6" Non-IC LED Cylinder Light, 2700K, 3000 Lumens, White Downlight Trim, 120-277V,
Regular price
Price:
$477.66
Regular price
Price:
Sale price
$477.66
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Heavy-gauge aluminum housing.
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Heavy-gauge aluminum housing.
Ceiling mount for direct installation to 4" octagonal or square junction box.
Pendant mount entry for 3/8" National Pipe Thread stem; wires supplied by others.
Textured polyester powder paint finish standard.
Multiple ceiling, pendant, cord, and wall mount options available.
OPTICS -- LEDs are binned to a 3-step SDCM; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55 degrees cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
ELECTRICAL -- Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available. 347V available option; transformer must be fieldinstalled to an accessible remote-mounted junction box.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
70% lumen maintenance at 60,000 hours.
LISTINGS -- Certified to US and Canadian safety standards. Damp location standard (wet location, covered ceiling optional). ENERGY STAR? certified product.
BUY AMERICAN -- This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT.
WARRANTY -- 5-year limited warranty.
Pendant mount entry for 3/8" National Pipe Thread stem; wires supplied by others.
Textured polyester powder paint finish standard.
Multiple ceiling, pendant, cord, and wall mount options available.
OPTICS -- LEDs are binned to a 3-step SDCM; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55 degrees cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
ELECTRICAL -- Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available. 347V available option; transformer must be fieldinstalled to an accessible remote-mounted junction box.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
70% lumen maintenance at 60,000 hours.
LISTINGS -- Certified to US and Canadian safety standards. Damp location standard (wet location, covered ceiling optional). ENERGY STAR? certified product.
BUY AMERICAN -- This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT.
WARRANTY -- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
