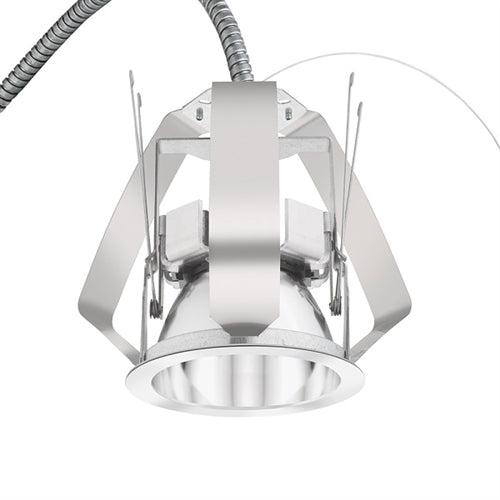

Lithonia LDN6RV 40/05 MVOLT GZ10 HSG 6 inch Retrofit LED Housing, 8.5W, 4000K Color Temperature, 500 Lumens, 120-277V, 0-10V Driver Dims to 10%
Lithonia LDN6RV 40/05 MVOLT GZ10 HSG 6 inch Retrofit LED Housing, 8.5W, 4000K Color Temperature, 500 Lumens, 120-277V, 0-10V Driver Dims to 10%
Regular price
Price:
$164.58
Regular price
Price:
Sale price
$164.58
Unit price
per
MODEL: Lithonia-LDN6RV-1100099
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- LED downlight for retrofit of installed commercial mounting frames with incandescent, compact fluorescent (CFL), or high intensity discharge (HID) sources.
CONSTRUCTION -- Innovative housing design that simultaneously retains and centers the fixture in the existing mounting frame.
INTENDED USE -- LED downlight for retrofit of installed commercial mounting frames with incandescent, compact fluorescent (CFL), or high intensity discharge (HID) sources.
CONSTRUCTION -- Innovative housing design that simultaneously retains and centers the fixture in the existing mounting frame.
See table in PDF Specification for compatible ceiling opening and thickness ranges.
All installation can be performed from the room side without removing the existing mounting frame.
OPTICS -- LEDs are binned to a 3-step SDCM; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55 degrees cutoff to source and source image.
Multiple lumen packages to replace the installed base of CFL or HID sources with energy savings of 50%-80%.
See Lumen Equivalency Chart.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
ELECTRICAL -- Multi-volt (120-277V, 50/60Hz) eldoLED 0-10V dimming drivers available in 10% or 1% minimum dimming levels.
70% lumen maintenance at 60,000 hours.
LISTINGS -- Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated.
WARRANTY -- 5-year limited warranty.
All installation can be performed from the room side without removing the existing mounting frame.
OPTICS -- LEDs are binned to a 3-step SDCM; 80 CRI minimum. 90 CRI optional.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55 degrees cutoff to source and source image.
Multiple lumen packages to replace the installed base of CFL or HID sources with energy savings of 50%-80%.
See Lumen Equivalency Chart.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
ELECTRICAL -- Multi-volt (120-277V, 50/60Hz) eldoLED 0-10V dimming drivers available in 10% or 1% minimum dimming levels.
70% lumen maintenance at 60,000 hours.
LISTINGS -- Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated.
WARRANTY -- 5-year limited warranty.
