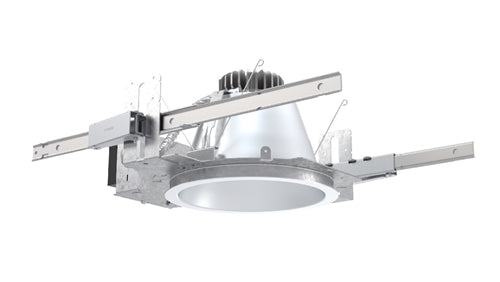

Lithonia LDN8 ALO2 SWW1 MVOLT UGZ HSG 8 Inch Non IC Round Downlight LED, Adjustable 1000/1500/2000 Lumens, Switchable 3000K-3500K-4000K-5000K Color Temperature, 120-277V, Dim to 10%, Housing Only
Lithonia LDN8 ALO2 SWW1 MVOLT UGZ HSG 8 Inch Non IC Round Downlight LED, Adjustable 1000/1500/2000 Lumens, Switchable 3000K-3500K-4000K-5000K Color Temperature, 120-277V, Dim to 10%, Housing Only
Regular price
Price:
$123.56
Regular price
Price:
Sale price
$123.56
Unit price
per
MODEL: Lithonia-LDN8-106763
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
INTENDED USE -- Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION -- Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs. Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination 1/2"-3/4" and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90 degree C. Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25 degree C standard. Light engine and drivers are accessible from above or below ceiling.
Ceiling thickness range 1/2" to 1-1/2".
OPTICS -- 55 degree cutoff
1.0 S/MH standard
80CRI standard (90CRI optional)
ELECTRICAL -- Adjustable lumen output with three module options.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% min dimming level). DALI driver dimming to 1% also available. Factory-installed 347V step-down transformer available.
100LPW typical
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V.
L80 @ 60,000 hours
3 SDCM
LISTINGS -- Certified to US and Canadian safety standards. Title 24 compliant (90CRI, up to 1000lm).
Wet location, covered ceiling. Wallwash suitable for damp locations only. Some configurations are Energy Star certified, please visit www.energystar.gov for specific products.
WARRANTY -- 5-year limited warranty.
CONSTRUCTION -- Galvanized steel mounting/plaster frame; galvanized steel junction box with bottom-hinged access covers and spring latches. Reflectors are retained by torsion springs. Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Two combination 1/2"-3/4" and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90 degree C. Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25 degree C standard. Light engine and drivers are accessible from above or below ceiling.
Ceiling thickness range 1/2" to 1-1/2".
OPTICS -- 55 degree cutoff
1.0 S/MH standard
80CRI standard (90CRI optional)
ELECTRICAL -- Adjustable lumen output with three module options.
MVOLT 120/277V 50/60Hz driver (0-10V & 120V Phase Dimming to 10% min dimming level). DALI driver dimming to 1% also available. Factory-installed 347V step-down transformer available.
100LPW typical
FCC CFR Title 47 Part 15 Class A for 277V. FCC CFR Title 47 Part 15 Class B for 120V.
L80 @ 60,000 hours
3 SDCM
LISTINGS -- Certified to US and Canadian safety standards. Title 24 compliant (90CRI, up to 1000lm).
Wet location, covered ceiling. Wallwash suitable for damp locations only. Some configurations are Energy Star certified, please visit www.energystar.gov for specific products.
WARRANTY -- 5-year limited warranty.
