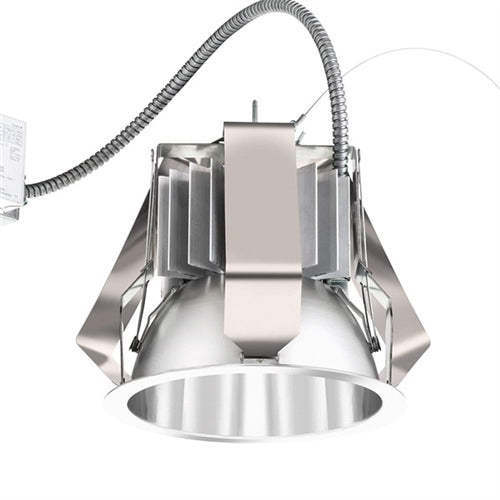

Lithonia LDN8RV 35/40 LR8AR LSS MVOLT GZ10 8" Retrofit LED Downlight, 3500K, 4000 Lumens, 8" Clear Trim, Semi-Specular Finish, 120-277V, 0-10V Driver Dims to 10%
Lithonia LDN8RV 35/40 LR8AR LSS MVOLT GZ10 8" Retrofit LED Downlight, 3500K, 4000 Lumens, 8" Clear Trim, Semi-Specular Finish, 120-277V, 0-10V Driver Dims to 10%
Regular price
Price:
$274.96
Regular price
Price:
Sale price
$274.96
Unit price
per
Ordering a large quantity?
Request a quote
description
INTENDED USE -- LED downlight for retrofit of installed commercial mounting frames with incandescent, compact fluorescent (CFL), or high intensity discharge (HID) sources. For applications with no existing pan or mounting frame, order the Rough-in frame listed in Accessories.
CONSTRUCTION -- Innovative housing design that simultaneously retains and centers the fixture in the existing mounting frame.

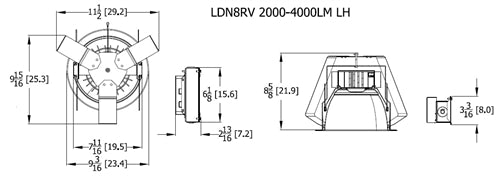

See table for compatible aperture sizes.
All installation can be performed from the room side without removing the existing mounting frame.
1/2" minimum ceiling thickness; 2" maximum ceiling thickness
OPTICS -- LEDs are binned to a 3-step SDCM; 80 CRI minimum.
LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55? cutoff to source and source image.
Multiple lumen packages to replace the installed base of CFL or HID sources with energy savings of 50%-80%. See Lumen Equivalency Chart.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
ELECTRICAL -- Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers available in 10% or 1% minimum dimming levels. Line voltage dimming driver available in 10% minimum dimming level.
70% lumen maintenance at 50,000 hours.
LISTINGS -- Certified to US and Canadian safety standards.
Damp location standard (wet location, covered ceiling optional).
WARRANTY -- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
