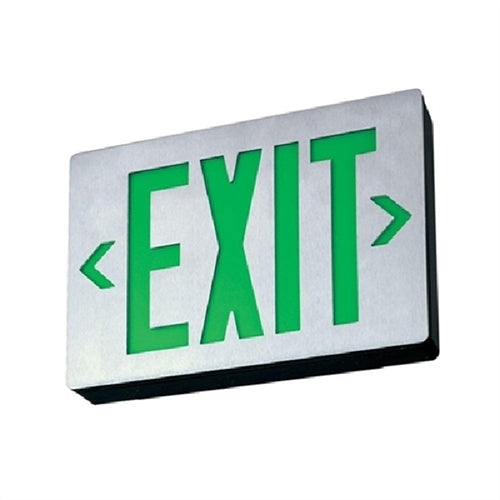

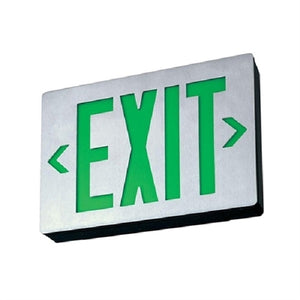

Lithonia LE S 2 G EL N Exit Sign Die-Cast Aluminum, LED Surface Mount, Stencil Face Type, Matte Black Housing, Double Face, Green Letter, 120-277V, Nickel-Cadmium Battery Back-Up
Lithonia LE S 2 G EL N Exit Sign Die-Cast Aluminum, LED Surface Mount, Stencil Face Type, Matte Black Housing, Double Face, Green Letter, 120-277V, Nickel-Cadmium Battery Back-Up
Regular price
Price:
$394.35
Regular price
Price:
Sale price
$394.35
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- Ideal for applications requiring attractive die-cast aluminum signage, superior illumination and low energy consumption.
CONSTRUCTION -- Precision-molded, die-cast aluminum construction ? ultra-slim, compact housing. Finegrain brushed aluminum faceplate with matte black electrostatic polymeric trim. Clear lacquer finish on brushed face inhibits fingerprints and other surface contaminants.
All electronics located inside housing.
Fully overlapping light seal prevents light leaks. Universal directional chevron knockouts are completely concealed and easily removed. Hinged faceplate and spring latches for easy lamp compartment access, no exposed hardware.
Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based upon UL924 standards.
U.S. Patent No. 5,739,639, 5,954,423 and 6,502,044. Canada Patent No. 2,204,218. Other patents pending.
OPTICS -- Lamp is constructed using new LED technology. Provides perfectly uniform illumination to meet 3/4" letter stroke required by code.
The typical life of the exit LED lamp is 5 years, based on 24/7 operation. Unique LED lamp platform accommodates both single-face and double-face exits.
Low energy consumption -- red exit consumes std .81W, 1.3W (120V), green exit consumes std is 1W, 1.5W (120V).
Universal input voltage capabilities (120V through 277V, 50 or 60 HZ).
ELECTRICAL -- Solid-state electronic elements to eliminate risk of electromechanical failures.
Surge protection meets ANSI/IEEE C62.41 category B and IEC 1000 immunity standards for high voltage surges, electrostatic discharges, high frequency electrical fast transients and line voltage dips/swells.
Emergency Operation (for EL N option only): Battery: Sealed, maintenance-free nickel-cadmium battery delivers 90 minutes capacity to lamp.
Self-diagnostics (SD option only): Two-state constant-current charger maximizes battery life and automatically recharges after battery discharge. Test switch provided for manual testing.
Self-diagnostic testing for five minutes every 30 days, 30 minutes at 180-day interval, and 90 minutes annually.
Diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition.
Continuously monitors AC functionality.
Low voltage disconnect prevents excessive deep discharge that can permanently damage the battery.
Single-point microcomputer control for all electronic features.
Crystal oscillator timing system with watchdog protection for precision accuracy.
AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge.
Brownout protection is automatically switched to emergency mode when supply voltage drops below 80% of nominal.
Single multi-chromatic LED indicator to display two-state charging, test activation and three-state diagnostic status.
Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.

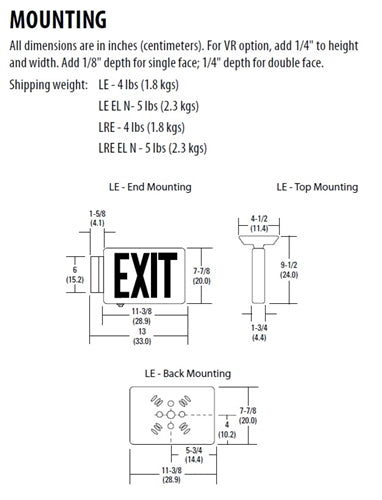

INSTALLATION -- Universal mounting (top, end or back). Double face available with top or end mounting only.
LRE: Trim ring has 3/4" depth adjustment to ensure a flush fit against the surface. Protrudes 1/10" from the surface.
No exposed hardware.
Die-cast aluminum canopy provided for surface mount only.
LISTINGS -- UL damp location listed 50?F - 104?F (10?C - 40?C). Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards. North Carolina Department of Insurance.
Government Procurement:
BAA - Buy America(n) Act: Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA - Build America Buy America: Product with a BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY -- 5-year limited warranty
INTENDED USE -- Ideal for applications requiring attractive die-cast aluminum signage, superior illumination and low energy consumption.
CONSTRUCTION -- Precision-molded, die-cast aluminum construction ? ultra-slim, compact housing. Finegrain brushed aluminum faceplate with matte black electrostatic polymeric trim. Clear lacquer finish on brushed face inhibits fingerprints and other surface contaminants.
All electronics located inside housing.
Fully overlapping light seal prevents light leaks. Universal directional chevron knockouts are completely concealed and easily removed. Hinged faceplate and spring latches for easy lamp compartment access, no exposed hardware.
Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based upon UL924 standards.
U.S. Patent No. 5,739,639, 5,954,423 and 6,502,044. Canada Patent No. 2,204,218. Other patents pending.
OPTICS -- Lamp is constructed using new LED technology. Provides perfectly uniform illumination to meet 3/4" letter stroke required by code.
The typical life of the exit LED lamp is 5 years, based on 24/7 operation. Unique LED lamp platform accommodates both single-face and double-face exits.
Low energy consumption -- red exit consumes std .81W, 1.3W (120V), green exit consumes std is 1W, 1.5W (120V).
Universal input voltage capabilities (120V through 277V, 50 or 60 HZ).
ELECTRICAL -- Solid-state electronic elements to eliminate risk of electromechanical failures.
Surge protection meets ANSI/IEEE C62.41 category B and IEC 1000 immunity standards for high voltage surges, electrostatic discharges, high frequency electrical fast transients and line voltage dips/swells.
Emergency Operation (for EL N option only): Battery: Sealed, maintenance-free nickel-cadmium battery delivers 90 minutes capacity to lamp.
Self-diagnostics (SD option only): Two-state constant-current charger maximizes battery life and automatically recharges after battery discharge. Test switch provided for manual testing.
Self-diagnostic testing for five minutes every 30 days, 30 minutes at 180-day interval, and 90 minutes annually.
Diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition.
Continuously monitors AC functionality.
Low voltage disconnect prevents excessive deep discharge that can permanently damage the battery.
Single-point microcomputer control for all electronic features.
Crystal oscillator timing system with watchdog protection for precision accuracy.
AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge.
Brownout protection is automatically switched to emergency mode when supply voltage drops below 80% of nominal.
Single multi-chromatic LED indicator to display two-state charging, test activation and three-state diagnostic status.
Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
INSTALLATION -- Universal mounting (top, end or back). Double face available with top or end mounting only.
LRE: Trim ring has 3/4" depth adjustment to ensure a flush fit against the surface. Protrudes 1/10" from the surface.
No exposed hardware.
Die-cast aluminum canopy provided for surface mount only.
LISTINGS -- UL damp location listed 50?F - 104?F (10?C - 40?C). Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards. North Carolina Department of Insurance.
Government Procurement:
BAA - Buy America(n) Act: Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA - Build America Buy America: Product with a BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY -- 5-year limited warranty
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
