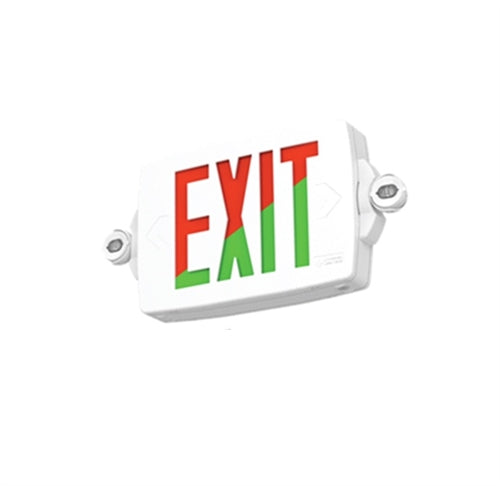

Lithonia LHQM S W RG MVOLT HO SD Emergency LED Light Exit Sign Combo, Stencil Face, White Housing, Red/Green Switchable Letter, 120-277V, High-Output, Self Diagnostic
Lithonia LHQM S W RG MVOLT HO SD Emergency LED Light Exit Sign Combo, Stencil Face, White Housing, Red/Green Switchable Letter, 120-277V, High-Output, Self Diagnostic
Regular price
Price:
$266.88
Regular price
Price:
Sale price
$266.88
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
The LHQM Exit Combo is great for applications requiring both an exit sign and emergency unit equipment in one product. The LHQM provides a sleek, modern and uniform aesthetic for any general purpose life safety application. It is available with an optional high-output option to power remote heads for an egress lighting system. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate.
Click here for Acrylic- Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION
Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof.
BUY AMERICAN ACT
BAA Buy America(n) Act: Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
5-year limited warranty.
INTENDED USE
The LHQM Exit Combo is great for applications requiring both an exit sign and emergency unit equipment in one product. The LHQM provides a sleek, modern and uniform aesthetic for any general purpose life safety application. It is available with an optional high-output option to power remote heads for an egress lighting system. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate.
Click here for Acrylic- Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION
Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof.
UL94V-O flame rating. UV-stable resin resists discoloration from natural and man-made light sources.
Rugged uni-body housing snaps together with no additional fasteners. Faceplate and back cover are interchangeable on housing. Positive snap-fit tabs hold faceplate securely, yet are easily removable for internal access.
Reinforced, impact-resistant red/green color panels.
Letters 6" high with 3/4" stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
U.S. Patent No. 6,848,798; 6,499,866; 6,142,648; 5,797,673; D379,373; 5,526,251; D484,272; D473,672; 5,611,163; 5,646,502.
OPTICS
LED light heads are adjustable forward/backwards, up/down and left/right for optimal adjust-ability.
LEDs operate for a minimum of 90 minutes in battery back-up mode.
The typical life of the exit combo LED is >5 years, based on 24/7 operation.
One, 1.2W LED per light head.
ELECTRICAL
Multi-volt, 120-277VAC, 50/60Hz.
LHQM (including SD only): 7.2V, 1200mAh Ni-Cad Battery.
LHQM HO and HO SD: 7.2V, 1800mAh Ni-Cad Battery. Provides 2.4W of Remote Capacity.
Self-Diagnostic Testing (SD option): Units with this option automatically performs a 5-minute self-diagnostic test of the charging electronics, battery, and lamps every 30 days, and a 90-minute test every year. First self-test occurs within 15 days of continuous AC Power and annual test after 180 days of continuous AC power. SD performs a diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition. SD provides constant light output for the local lampheads.
AELR Option: STAR (Self-testing Automated Reporting) radio transmits monthly and annual test results and diagnostics information for automated reporting requirements.
For more information visit AcuityBrands.com/STAR.
INSTALLATION
Mounting canopy provides both top and back mount capability. Canopy design uses cam locking pin to secure sign to canopy with no visible hardware seen from the floor.
Ships as a single sided exit with additional face plate and red/green color panels to easily convert from single face exit to double face exit.
Directional chevrons can be easily removed and reinserted depending on the application.
LISTINGS
UL Listed. UL damp location 50 degreesF to 104 degreesF (10 degreesC to 40 degreesC) listed. Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), California Energy Commission Title 20 section 1605.3 (W)(4) and OSHA. Meets all applicable FCC Title 47, Part 15, Subpart B requirements not containing self-diagnostics (SD) option. Meets all applicable FCC Title 47, Part 15, Subpart A requirements for SD option. NOM certified.
Rugged uni-body housing snaps together with no additional fasteners. Faceplate and back cover are interchangeable on housing. Positive snap-fit tabs hold faceplate securely, yet are easily removable for internal access.
Reinforced, impact-resistant red/green color panels.
Letters 6" high with 3/4" stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
U.S. Patent No. 6,848,798; 6,499,866; 6,142,648; 5,797,673; D379,373; 5,526,251; D484,272; D473,672; 5,611,163; 5,646,502.
OPTICS
LED light heads are adjustable forward/backwards, up/down and left/right for optimal adjust-ability.
LEDs operate for a minimum of 90 minutes in battery back-up mode.
The typical life of the exit combo LED is >5 years, based on 24/7 operation.
One, 1.2W LED per light head.
ELECTRICAL
Multi-volt, 120-277VAC, 50/60Hz.
LHQM (including SD only): 7.2V, 1200mAh Ni-Cad Battery.
LHQM HO and HO SD: 7.2V, 1800mAh Ni-Cad Battery. Provides 2.4W of Remote Capacity.
Self-Diagnostic Testing (SD option): Units with this option automatically performs a 5-minute self-diagnostic test of the charging electronics, battery, and lamps every 30 days, and a 90-minute test every year. First self-test occurs within 15 days of continuous AC Power and annual test after 180 days of continuous AC power. SD performs a diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition. SD provides constant light output for the local lampheads.
AELR Option: STAR (Self-testing Automated Reporting) radio transmits monthly and annual test results and diagnostics information for automated reporting requirements.
For more information visit AcuityBrands.com/STAR.
INSTALLATION
Mounting canopy provides both top and back mount capability. Canopy design uses cam locking pin to secure sign to canopy with no visible hardware seen from the floor.
Ships as a single sided exit with additional face plate and red/green color panels to easily convert from single face exit to double face exit.
Directional chevrons can be easily removed and reinserted depending on the application.
LISTINGS
UL Listed. UL damp location 50 degreesF to 104 degreesF (10 degreesC to 40 degreesC) listed. Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), California Energy Commission Title 20 section 1605.3 (W)(4) and OSHA. Meets all applicable FCC Title 47, Part 15, Subpart B requirements not containing self-diagnostics (SD) option. Meets all applicable FCC Title 47, Part 15, Subpart A requirements for SD option. NOM certified.
BUY AMERICAN ACT
BAA Buy America(n) Act: Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
5-year limited warranty.
