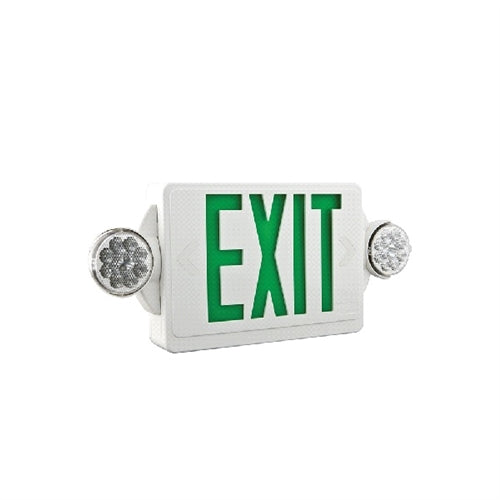

Lithonia LHQM LED G HO R0 M6 LED Emergency Light Exit Sign Combo White Thermoplastic 2-Lamp Single Face Quantum Green Letters Battery Backup, Less Lamp Heads

The Quantum LHQM LED is the perfect choice with space at a premium. The combination of exit and emergency lighting also has self-diagnostic option available.

Intended Use

Suitable for applications requiring quick installation of both exit sign and unit equipment with a streamlined design for above-the-door applications and other tight fits.

Construction

Precision-molded thermoplastic housing is impact-resistant and scratch-resistant, corrosion-proof and UV-stabilized to resist discoloration.

Replaceable chevron directional indicator knockouts for choice of direction.

Features long-life LED lamps which virtually eliminate the need to ever change a lamp. The typical life of the exit LED lamp is 10 years.

Electrical

Dual-voltage input standard (120/277V). Nickel-cadmium battery standard. Optional high-output battery (HO) for use with up to four LED remote heads; HO R0 for use up to eight LED remote heads.

Installation

Quick-Mount installation: innovative, snap-together design allows for installation in less than three minutes. Factory assembled and pre-wired.

Listings

UL damp location listed for 50-104 F (10-40 C). Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards.
