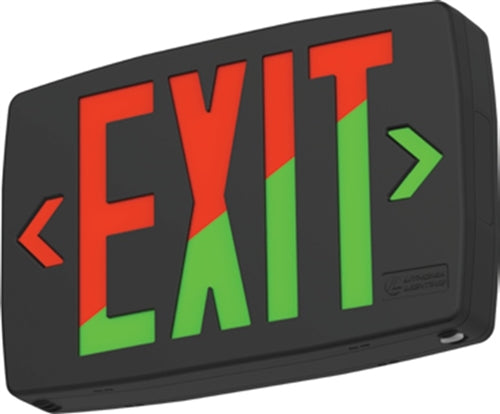

Lithonia LQM S B RG MVOLT M6 Quantum LED Exit Sign, Stencil Face, Black Housing, Red/Green Switchable Letter, 120-277V
Lithonia LQM S B RG MVOLT M6 Quantum LED Exit Sign, Stencil Face, Black Housing, Red/Green Switchable Letter, 120-277V
Regular price
Price:
$82.34
Regular price
Price:
Sale price
$82.34
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE
Ideal for applications requiring attractive, quick-installation exit signs and low energy consumption.
INTENDED USE
Ideal for applications requiring attractive, quick-installation exit signs and low energy consumption.
Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION
Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant, and corrosion-proof. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. 4 SKUs in 1: LQM: Standard with Red/Green Color Selection & AC/Battery Back-Up (EL) switch takes the guess work out of ordering. LQM EL HO: Standard with Nickel Cadmium battery back with remote capacity.
3 Color Finishes: Available in white housing with white faceplate, black housing with black faceplate or black housing with brushed silver faceplate providing an upgraded aesthetic.
Face Standard: LQM ships with an extra faceplate to quickly convert from single to double face exit sign depending on the application. Directional chevrons can be easily removed and reinserted depending on the application.
Quick & Clean Installation: Standard with a quick mount canopy enabling faster installation, while leaving no hardware visible from the floor.
Letters 6" high with 3/4" stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
U.S. Patent No. 5,526,251; 5,611,163; 5,739,639; 5,954,423; 5,988,825; 6,152,581; D383,501; D495,751 and 6,502,044. Other patents pending.
OPTICS
LEDs operate in normal (AC input) and emergency (Battery Back-up) mode for a minimum of 90 minutes.
The typical life of the exit LED lamp is >5 years, based on 24/7 operation.
ELECTRICAL
MULTI VOLT 120-277VAC, 50/60hz.
LQM: Equipped with an AC/Battery Back-Up (EL) internal switch. This gives the installer the ability to select the AC mode when the building is using a generator or inverter to provide emergency power to the sign or simply switch to Battery mode when these systems are not present, providing 90-minutes battery capacity. (Patent Pending).
Sign ships standard in AC mode. Sign ships with the battery included.
LQM: 1.2V, 900mAH Ni-Cad Battery
LQM EL HO: Equipped with sealed, maintenance-free nickel-cadmium battery providing 90-minutes capacity to emergency lamps.
LQM EL HO: 3.6V, 1200mAH Ni-Cad Battery. Provides 2.4W of Remote Capacity.
INSTALLATION

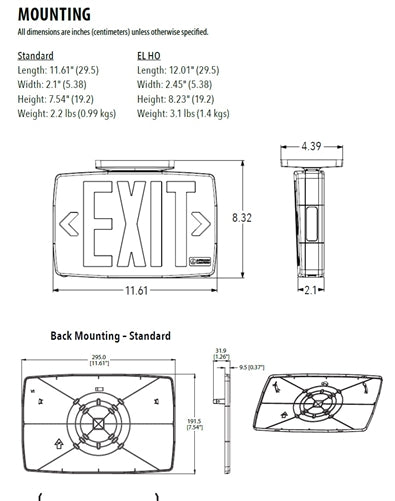

Mounting canopy allows for top, back or end mounting. Back mount standard for single face only. Canopy design uses cam locking pin to secure sign to canopy with no visible hardware seen from the floor.
Ships as a single sided exit with additional face plate and red/green color panels to easily convert from single face exit to double face exit.
Directional chevrons can be easily removed and reinserted depending on the application.
LISTINGS
UL damp location listed 50°-104°F (10°-40°C) standard. Meets UL924, NFPA 101 (current Life Safety Code), NEC, California Energy Commission Title 20 section 1605.3 (W)(4) and OSHA illumination standards. Meets all applicable FCC Title 47, Part 15, Subpart B requirements.
WARRANTY
5-year limited warranty. (Battery is prorated.)
CONSTRUCTION
Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant, and corrosion-proof. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. 4 SKUs in 1: LQM: Standard with Red/Green Color Selection & AC/Battery Back-Up (EL) switch takes the guess work out of ordering. LQM EL HO: Standard with Nickel Cadmium battery back with remote capacity.
3 Color Finishes: Available in white housing with white faceplate, black housing with black faceplate or black housing with brushed silver faceplate providing an upgraded aesthetic.
Face Standard: LQM ships with an extra faceplate to quickly convert from single to double face exit sign depending on the application. Directional chevrons can be easily removed and reinserted depending on the application.
Quick & Clean Installation: Standard with a quick mount canopy enabling faster installation, while leaving no hardware visible from the floor.
Letters 6" high with 3/4" stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
U.S. Patent No. 5,526,251; 5,611,163; 5,739,639; 5,954,423; 5,988,825; 6,152,581; D383,501; D495,751 and 6,502,044. Other patents pending.
OPTICS
LEDs operate in normal (AC input) and emergency (Battery Back-up) mode for a minimum of 90 minutes.
The typical life of the exit LED lamp is >5 years, based on 24/7 operation.
ELECTRICAL
MULTI VOLT 120-277VAC, 50/60hz.
LQM: Equipped with an AC/Battery Back-Up (EL) internal switch. This gives the installer the ability to select the AC mode when the building is using a generator or inverter to provide emergency power to the sign or simply switch to Battery mode when these systems are not present, providing 90-minutes battery capacity. (Patent Pending).
Sign ships standard in AC mode. Sign ships with the battery included.
LQM: 1.2V, 900mAH Ni-Cad Battery
LQM EL HO: Equipped with sealed, maintenance-free nickel-cadmium battery providing 90-minutes capacity to emergency lamps.
LQM EL HO: 3.6V, 1200mAH Ni-Cad Battery. Provides 2.4W of Remote Capacity.
INSTALLATION
Mounting canopy allows for top, back or end mounting. Back mount standard for single face only. Canopy design uses cam locking pin to secure sign to canopy with no visible hardware seen from the floor.
Ships as a single sided exit with additional face plate and red/green color panels to easily convert from single face exit to double face exit.
Directional chevrons can be easily removed and reinserted depending on the application.
LISTINGS
UL damp location listed 50°-104°F (10°-40°C) standard. Meets UL924, NFPA 101 (current Life Safety Code), NEC, California Energy Commission Title 20 section 1605.3 (W)(4) and OSHA illumination standards. Meets all applicable FCC Title 47, Part 15, Subpart B requirements.
WARRANTY
5-year limited warranty. (Battery is prorated.)
