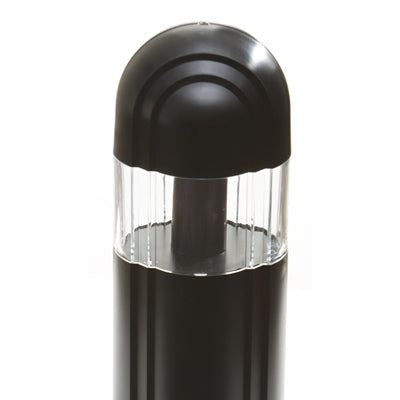

Lithonia MRBX 50S ASY 277 DBLB LPI 50W High Pressure Sodium Omero Architectural Bollard Area Light, Asymmetric Distribution, 277V, Lamp Included, Black Finish

For walkways, plazas or pedestrian areas.

Housing: Extruded one-piece aluminum, 0.156” wall thickness. Molded top cover, 0.156” wall thickness. 42” overall height standard. 8” nominal diameter tube standard. Three 1/2” x 11” anchor bolts with double nuts and washers (shipped separately). 3-3/4” bolt circle template included.

Standard finish is textured dark bronze (DDBT) polyester powder, electrostatically applied and oven-cured. Other colors and flat powder paint available as options.

Two reflector options are available: Type V symmetric and asymmetric distribution. Asymmetric reflector is adjustable independent of bollard orientation and can be adjustedwithout removing top cover. Lens is clear, seamless 100% virgin acrylic, 1/4” wall, flush fitting. Coated lamp is standard.

High pressure sodium and metal halide are high-power-factor ballasts. 100% copper-wound and factory-tested for reliable operation. Electrical components are tray-mounted with quick-disconnect plug and are accessible through top of bollard. Vertically oriented, medium-base pulse-rated porcelain socket with copper alloy, nickel-plated shell and center contact. Compact fluorescent electronic high-frequency multi-volt ballast, starting temperature 0°F (-18°C), <10% THD. Ballasts are mounted on a removable power tray. Four-pin, white thermoplastic body with quick-connect push-in wiring terminals.
