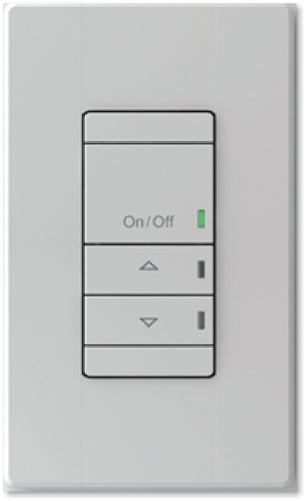

Lithonia NPODMA 2P DX IV nLight Wired Wall Switch, Two Channels, On/off + Raise/Lower Control, Ivory

Lithonia NPODMA 2P DX IV nLight Wired Wall Switch, Two Channels, On/off + Raise/Lower Control, Ivory

Price: $185.18
Price: $185.18

MODEL: Lithonia-NPODMA-1110096
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION
The nPODMA Series WallPods are single gang nLight-enabled decorator wall switches that enable toggle/ raise/lower/scene control of lighting zones. Equipped with soft-click push-buttons, and a green LED indicator for each button, these devices allow field replaceable and custom engraved button options.
nPODMA WallPods communicate with other nLight devices, via CAT-5e cable, through RJ-45 connectors and can be daisy-chained to work with nLight power packs and/or nLight-enabled fixtures to provide switch control operations.
The scene control option presents a convenient method of selecting a custom lighting contrl scene for spaces in which installed, or requesting a global profile scene be run across several remote zones. By default, scene control wall switches are configured as on/off toggle switches and are to be customized programmatically through the SensorView software.
*In order to utilize a blink warning, system gateway and additional programming is required.

PRODUCT FAMILY FEATURES
  • Communicates with nLight network
  • Remotely configurable/upgradeable
  • Soft-click push-button control
  • Sets lights to one of two or four preset levels with single button push (nPODMA xL versions only)
  • Scene controllers run locally stored scenes or global scenes (stored on gateway)
  • Capable of Programming 4 Different Scene Types:
    • Local "Profile" Scene -- Modifies the operational configuration of up to 80 devices in the local zone. Stopping scene will revert devices to default settings.
    • Local "Preset" Scene -- Modifies on/off/dim levels for up to 16 local switch groups. Exit scene through additional "preset" scene or WallPod control.
    • Global "Profile" Scene -- Modifies the operational configuration of any devices on the system. Stopping scene will revert devices to default settings. Scene is stored on the system Gateway.
    • Global “Preset" Scene — Modifies on/off/dim levels for up to 128 global switch groups. Exit scene through additional “preset" scene or WallPod control.
  • Easy-to-install screwless wall plate design offers a clean, uninterrupted aesthetic for a more refined look in the space.
  • A full range of color options provides a variety of choices for your building designs with the assurance that the housing and the wall plate match.
  • 1, 2, or 4 channel on/off
  • 1, 2, or 4 channel raise/lower
  • "Dynamic" options for custom button names when pairing with Acuity Brands nTUNE fixtures
CUSTOM BUTTON ENGRAVING
  • Standard Button labeling is shown on back
  • Custom lettering for units can be specified and ordered at: nGrave Form
  • To ensure color uniformity, ordering templates facilitate specifying all buttons on a unit as custom lettered. Replacing single buttons not recommended
  • Buttons may ship separately and require field installations
