Home > Lithonia Lighting > Lithonia NPP PCD EFP nLight Wired Phase Adaptive Dimmer Power Pack, External Fault Protection

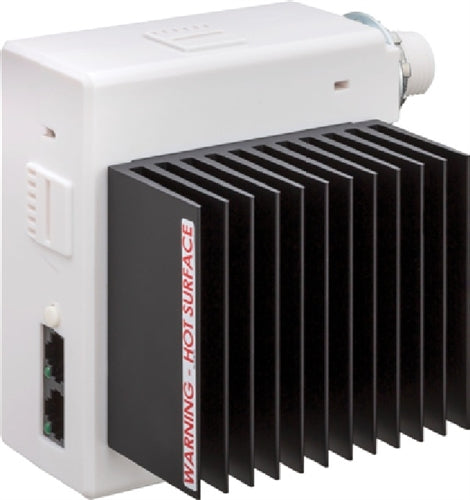

Lithonia NPP PCD EFP nLight Wired Phase Adaptive Dimmer Power Pack, External Fault Protection
Lithonia NPP PCD EFP nLight Wired Phase Adaptive Dimmer Power Pack, External Fault Protection
Regular price
Price:
$471.11
Regular price
Price:
Sale price
$471.11
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT DESCRIPTION
The nLight nPP PCD power pack is an adaptive phase control dimmer that delivers significant performance and design versatility. It is designed to control large phase dimmed loads, controlling forward-phase dimming and reverse-phase-dimming loads as large as 16A at 120VAC and 277VAC. This power pack also provides nLight system bus power - up to 40mA from each of its two RJ-45 ports - by transforming Class 1 line voltage (120-277 VAC) to Class 2 low voltage (24 VDC). This power is utilized by other nLight devices within the power pack’s local control zone.
PRODUCT FEATURES
The nLight nPP PCD power pack is an adaptive phase control dimmer that delivers significant performance and design versatility. It is designed to control large phase dimmed loads, controlling forward-phase dimming and reverse-phase-dimming loads as large as 16A at 120VAC and 277VAC. This power pack also provides nLight system bus power - up to 40mA from each of its two RJ-45 ports - by transforming Class 1 line voltage (120-277 VAC) to Class 2 low voltage (24 VDC). This power is utilized by other nLight devices within the power pack’s local control zone.
PRODUCT FEATURES
-
Provides phase dimming control for 2-wire dimming fluorescent, electronic low voltage, incandescent, and magnetic low voltage loads
-
Controls loads as small as 0A and as high as 16A at 120VAC and 277VA
-
Meets NEMA SSL 7A for flicker-free dimming performance
-
Intelligently selects appropriate dimming metho
-
Supplies 40mA of Bus Power per RJ-45 por
-
Power Monitoring is standard with Current Measurement +/- 2% accurate
-
Push-Button Programmable
-
UL 924 listed option for built in, simplified lighting control on emergency lighting circuit
-
Plenum rate
-
Includes a replaceable fuse, which protects the device from overload and short circuit fault
- Programmable return to last state capability
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
