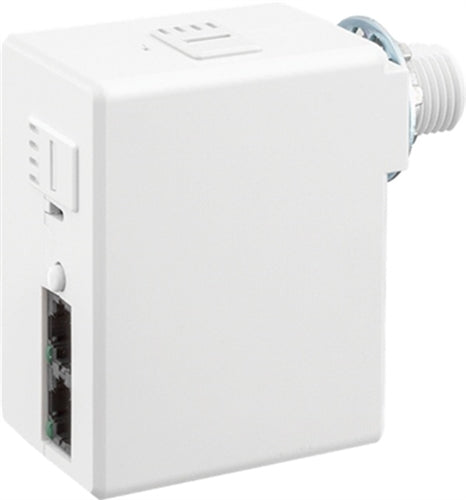

Lithonia NPP16 DS EFP PA70 Emergency Relay Pack, 0-10VDC Dimming Output, External Fault Protection, 120/277VAC, Auto On to 70%

PRODUCT FAMILY SPECIFICATIONS
The nLight nPP16 EFP family of power packs is the workhorse of an nLight system, delivering robust system performance and design versatility for commercial and industrial lighting control applications. The nPP16 EFP family is capable of switching loads via an internal latching relay designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads. These power packs also provide nLight system bus power - up to 40mA from each of its two RJ-45 ports - by transforming Class 1 line voltage (120/277 VAC or 347 VAC) to Class 2 low voltage (15 VDC). This power is typically utilized by other nLight devices within the power pack’s local control zone; however, remaining power is also made available over the network for Bridges and devices in other zones to utilize.

PRODUCT FEATURES

• Communicates w/ nLight Network
• Self-Contained Relay Switches Line Voltage Load
• Supplies 40mA of Bus Power / RJ-45 port
• Optional out-of-box vacancy and partial-on modes
• Remotely Configurable/Upgradeable
• Push-Button Programmable
• Configurable Relay Logic
• Extended Chase Nipple
• Plenum rated
• Includes fuse integrated to relay wirelead for protection from load faults
• Meets NEMA410 ratings for LED/electronic ballast inrush
• Programmable return to last state capability

Buy American Act
Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations.

Build America Buy America
Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.

Warranty
Five-year limited warranty
