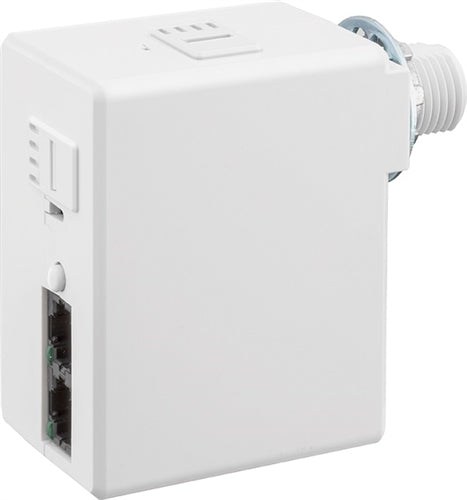

Lithonia NPP16 EFP Power/ Relay Pack, No Dimming, Auto On (Switch Ch. 1), 120/277VAC, Standard Temp/ Humidity
Lithonia NPP16 EFP Power/ Relay Pack, No Dimming, Auto On (Switch Ch. 1), 120/277VAC, Standard Temp/ Humidity
Regular price
Price:
$112.80
Regular price
Price:
Sale price
$112.80
Unit price
per
MODEL: Lithonia-NPP16-110382
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
The nLight nPP16 EFP family of power packs is the workhorse of an nLight system, delivering robust system performance and design versatility for commercial and industrial lighting control applications. The nPP16 EFP family is capable of switching loads via an internal latching relay designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads. These power packs also provide nLight system bus power - up to 40mA from each of its two RJ-45 ports - by transforming Class 1 line voltage (120/277 VAC or 347 VAC) to Class 2 low voltage (15 VDC). This power is typically utilized by other nLight devices within the power pack’s local control zone; however, remaining power is also made available over the network for Bridges and devices in other zones to utilize.
PRODUCT FAMILY FEATURES
PRODUCT FAMILY FEATURES
- Communicates w/ nLight Network
- Self-Contained Relay Switches Line Voltage Load
- Supplies 40mA of Bus Power / RJ-45 port
- Optional out-of-box vacancy and partial-on modes
- Remotely Configurable/Upgradeable
- Push-Button Programmable
- Configurable Relay Logic
- Extended Chase Nipple
- Plenum rated
- Includes fuse integrated to relay wirelead for protection from load faults
- Meets NEMA410 ratings for LED/electronic ballast inrush
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
