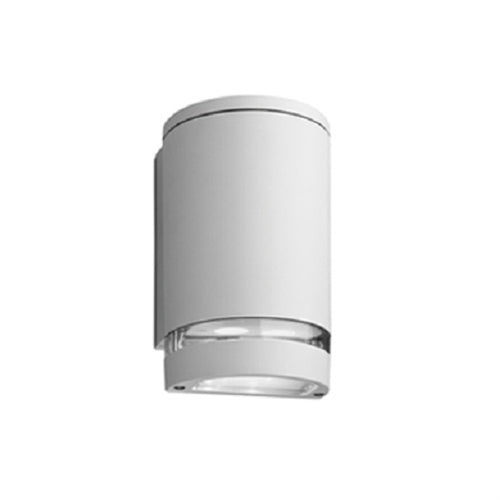

Lithonia OLLWD LED P1 40K 120V WH LED Wall Cylinder Light, Downlight, P1 Performance Package, 4000K Color Temperature, 120V, White Finish

Intended Use

Provides years of maintenance-free illumination for outdoor use in residential & commercial applications. Ideal for applications such as lighting walkways and stairways for safety and security.

Construction

Cast-aluminum housing with corrosion-resistant paint in either dark bronze or white finish.

ADA compliant.

Optics

4000K CCT LEDs.

Polycarbonate lens protects the LED from moisture, dirt and other contaminants.

LUMEN MAINTENANCE: The LED will deliver 70% of its initial lumens at 50,000 hour average LED life.

See Lighting Facts label on page 2 for performance details.

Electrical

MVOLT driver operates on any line voltage from 120-277V

Operating temperature -30⁰C to 40⁰C.

1KV surge protection standard.

Installation

Surface mounts to universal junction box (provided by others).

Listings

UL Listed to U.S. and Canadian safety standards for wet locations.

Tested in accordance with IESNA LM-79 and LM-80 standards.
