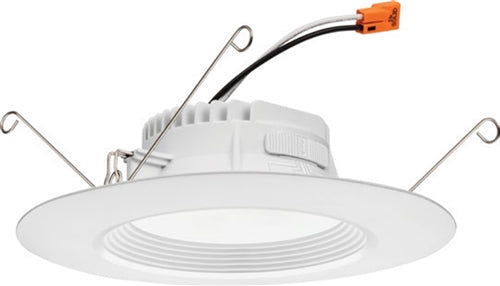

Lithonia RB56 SWW5 MW M6 10.2W 5"/6" Switchable White LED Baffle Trim Kit, 860 Lumens, 2700K-5000K, 90 CRI, 120V, 100%-10% Dimming, White
Lithonia RB56 SWW5 MW M6 10.2W 5"/6" Switchable White LED Baffle Trim Kit, 860 Lumens, 2700K-5000K, 90 CRI, 120V, 100%-10% Dimming, White
Regular price
Price:
$14.00
Regular price
Price:
Sale price
$14.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
DOWNLIGHT LED TRIM KIT
DOWNLIGHT LED TRIM KIT
- Molded thermal plastic housing with non-conductive trim frame offered in baffle or smooth design in matte white finish
- Pressed-in diffusing lens optimized for concealing the LEDS from direct view in the on and off state
- All-in-one design where LED light engine mounts directly to the trim for ease of installation into existing 5" or 6" recessed housings with medium base sockets or quick connect LED housings
- Provided with torsion springs
- Optional field installable trim insert accessories to compliment any room available in three painted finishes including matte black, bronze and satin nickel.
- LEDs are mounted directly to housing providing superior thermal management to ensure long life
- Switchable white LED color temperature technology offers 2700K, 3000K, 3500K, 4000K, 5000K all in one trim
- Switch factory set at 3000K
- 90 CRI minimum
- Accommodates 120 volts AC at 60Hz
- Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
- For a list of compatible dimmers, see JUNORBSERIES-DIM.
- Regressed, diffused lens at end of mixing chamber to provide even light distribution for general illumination
- Optimized for wide fixture spacings
- Up to 860 nominal lumens is equivalent to 75W BR30 lamp.
- Trim features quick connect plug installed as standard for installation into Juno quick connect housings with mating connector
- Trim ships with a medium base socket adapter whip for installation into 5" or 6" incandescent housings with medium base sockets.
- Rated for 50,000 hours at 70% lumen maintenance.
- CSA certified to US and Canadian safety standards
- ENERGY STAR certified product
- Suitable for wet location
- Air-Loc certified in accordance with ASTM E283-2004
- NOM Certified
- Can be used to comply with California Title 24 Part 6 High Efficacy LED light Source Requirements
- T20 Certified.
- 5-year limited warranty.
