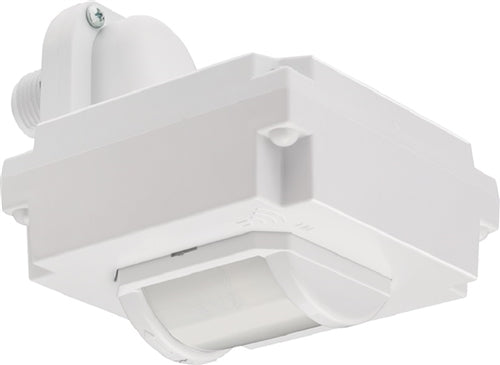

Lithonia RLSXR 6 IM WH G2 nLight AIR Fixture Mount Occupancy Sensor, High Mount 360 Degrees, Current Monitoring, White, 8" Lead Length, Generation 2
Lithonia RLSXR 6 IM WH G2 nLight AIR Fixture Mount Occupancy Sensor, High Mount 360 Degrees, Current Monitoring, White, 8" Lead Length, Generation 2
Regular price
Price:
$163.43
Regular price
Price:
Sale price
$163.43
Unit price
per
MODEL: Lithonia-RLSXR-1100264
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Electrical Specifications
Electrical Specifications
- Input Ratings rLSXR 120-277VAC, 50/60 Hz 2.5W
- rLSXR HVOLT 347-480VAC, 50/60 Hz 2.5W
- Maximum Load 450 W @ 120-277
- 720 W @ 347-480
- Dimming Load Sinks <10mA (0-10 VDC LED Drivers/Ballasts)
- Minimum Load None
- Class Rating 0-10V Dimming can be wired Class 1 or 2
- Mounting 1/2” Knockout (7/8” hole)
- Mounting Height rLSXR 10: 7 to 15 ft (2.13 to 4.57 m)
- rLSXR 6: 15-45 ft (4.57-13.72m)
- rLSXR 9: 8-15 ft (2.44-4.57m)
- rLSXR 50: 40 ft (12.19m)
- Connection Type Line and Low Voltage Leads
- Warrantied Operating Temperature -40º to 149º F (-40º to 65º C)
- Standards/ Ratings RoHS, UL 916, UL 924 (optional), FCC / IC / IFETEL
