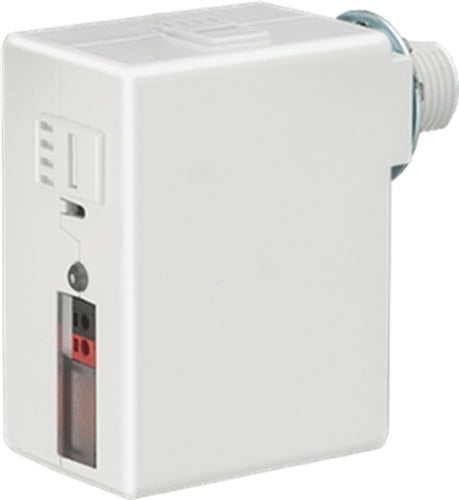

Lithonia RPP20 DS 24V EFP G2 nLight AIR Power/Relay Pack, 0-10VDC Dimming Output via Side Leads 24V Output Terminals, External Fault Protection, 120-277V, Generation 2

PRODUCT FAMILY SPECIFICATIONS
OVERVIEW
nLight AIR rPP power packs are designed to offer flexible control for commercial and industrial lighting applications. The rPP consists of a relay, 0-10V dimming control, and a low voltage power supply output to power and wireless sensors. The rPP is capable of switching loads up to 20 A via a latching relay designed with robust inrush protection. Select power packs provide +24VDC low voltage output to power up to 4 nLight AIR mounted occupancy sensors and photocells. The nLight AIR rPP is designed for use as part of an nLight AIR group of devices or with the nLight ECLYPSE

POWER PACK FEATURES

• On/Off and dimming control of a luminaire or group of luminaires
• 24VDC output to power up to 4 nLight AIR rCMS low voltage sensors or other low voltage devices
• Suitable for plug load control
• UL 924 listed options for simplified lighting control on emergency lighting circuits
• Power Monitoring with Current Measurement +/- 3% accuracy
• Programmable return to last state capability

INSTALLATION FEATURES

• Wireless communication enables simple retrofits - no communication wires to pull between devices
• Chase nipple or side output dimming options
• UL 2043 listed for plenum applications
• An optional external antenna (CP option) for meeting code specific requirements or IP-rated applications
• Simple app-based configuration of space behaviors

ADVANCED WIRELESS FEATURES

• Devices intercommunicate to provide grouped-response to motion and on/off and dimming response to daylight conditions when wirelessly connected to a motion or daylight sensor, or on/off/dimming when connected to a wireless switch
• Fully compatible with other nLight AIR devices on the site
• Easy to integrate with the nLight ECLYPSE, which provides site-wide lighting control through nLight's SensorView software and provides optional BMS integration
• Comprehensive wireless security

Warranty
Five-year limited warranty
