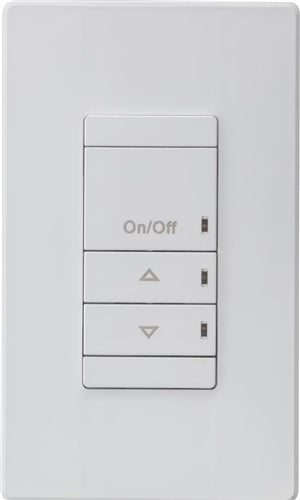

Lithonia SPODMRA MWO D IV Switchpod Dimming Switch with Multi-way (3-Way) Operation, 120-277V, 0-10 VDC Dim Level, Ivory

PRODUCT FAMILY DESCRIPTION
The push-button Dimming Series of wall stations are a cost-effective solution for commercial lighting applications. Additionally, all sPODMRA switches have a patent pending wiring method that enables them to function either with or without a neutral connection. sPODMRA units come preconfigured for wiring without a neutral, however, if a connection to neutral is required by code, contractors can convert the unit in seconds.

PRODUCT FAMILY FEATURES

• Programmable without removing switch plate
• MWO option supports up to 9 MWO devices when using a neutral
• sPODMRA MWO can be used in conjunction with WSXA MWO
• Compatible with 0-10V dimming
• Include Screwless Wall Plate: Available in WH, IV, GY, AL, BK, RD
• Each MWO device can switch and dim individually
• Switching and Dimming will be performed simultaneously across the devices connected through the communication wire
