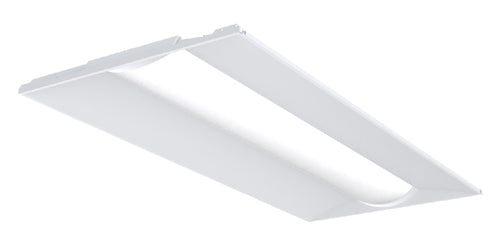

Lithonia STAKS 2X4 ALO6 SWW7 UVOLT 2'x4' LED Volumetric Troffer, 31W - 49W, Switchable 4000/5000/6000 Lumens, Switchable CCT 3500K/4000K/5000K, 120-347V
Lithonia STAKS 2X4 ALO6 SWW7 UVOLT 2'x4' LED Volumetric Troffer, 31W - 49W, Switchable 4000/5000/6000 Lumens, Switchable CCT 3500K/4000K/5000K, 120-347V
Regular price
Price:
$160.16
Regular price
Price:
Sale price
$160.16
Unit price
per
MODEL: Lithonia-STAKS-110729
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- Available in 2X2, 2X4, and 1X4 configurations, STACK Switch provides both functionality and efficiency. Selectable lumens allows for a variety of mounting heights and switchable color temperature allow you to fine tune the look of your space. The wide center basked and curved matte reflector allow STACK Switch to deliver a high quality of light while maintaining optimal performance.
INTENDED USE -- Available in 2X2, 2X4, and 1X4 configurations, STACK Switch provides both functionality and efficiency. Selectable lumens allows for a variety of mounting heights and switchable color temperature allow you to fine tune the look of your space. The wide center basked and curved matte reflector allow STACK Switch to deliver a high quality of light while maintaining optimal performance.
- Lumen and color switching make the STACK switch a distributors dream! Go from stocking 27 configurations to just three!
- 0-10V dimming to 10%
- Long-life LEDs deliver 80% lumen maintenance at 60,000 hours
The STACK Switch troffer delivers glare-free, ambient lighting in a popular center-basket design. The slim profile of the luminaire, coupled with energy-saving LED technology make the STACK Switch an ideal choice for renovation or new construction. The STACK Switch troffer offers a high-quality, cost-effective LED lighting solution for schools, offices, retail, healthcare facilities and other commercial spaces.
CONSTRUCTION -- The reflector is finished with a glare reducing matte white paint for improved aesthetics and increased light diffusion. End plates contain easy-to-position integral T-bar clips to securely attach the luminaire to the T-grid. Diffusers are extruded from impact modified acrylic for increased durability. LED boards are accessible from the room-side and drivers are accessible from the plenum.
INSTALLATION -- With a depth of only 1.9", the STACK Switch makes for an easy installation, especially in restrictive plenum applications. The STACK Switch fits into standard 15/16" and narrow 9/16" T-grid ceiling systems. Suitable for damp location.
ELECTRICAL -- Long-life LED's, coupled with high-efficiency drivers provide superior quality of light and an extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000). 0-10 volt dimming driver, dims to 10%.
Lumen and Color Switching: Integrated lumen and color switching module is easily accessible and mounted on the driver box on the back of the fixture. Simply adjust the toggle switch for low, medium, and high lumen and color settings.
OPTICS -- Volumetric illumination is achieved by creating an optimal mix of light to walls, partitions and vertical and horizontal work surfaces -- rendering the interior space, objects and occupants in a more balanced, complimentary luminous environment. A high performance acrylic diffuser conceals LED's and efficiently delivers light in a volumetric distribution.
LISTINGS -- CSA certified to meet US and Canadian standards. Damp location listed. IC rated.
DesignLights Consortium (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified.
WARRANTY -- 5-year limited warranty.
CONSTRUCTION -- The reflector is finished with a glare reducing matte white paint for improved aesthetics and increased light diffusion. End plates contain easy-to-position integral T-bar clips to securely attach the luminaire to the T-grid. Diffusers are extruded from impact modified acrylic for increased durability. LED boards are accessible from the room-side and drivers are accessible from the plenum.
INSTALLATION -- With a depth of only 1.9", the STACK Switch makes for an easy installation, especially in restrictive plenum applications. The STACK Switch fits into standard 15/16" and narrow 9/16" T-grid ceiling systems. Suitable for damp location.
ELECTRICAL -- Long-life LED's, coupled with high-efficiency drivers provide superior quality of light and an extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000). 0-10 volt dimming driver, dims to 10%.
Lumen and Color Switching: Integrated lumen and color switching module is easily accessible and mounted on the driver box on the back of the fixture. Simply adjust the toggle switch for low, medium, and high lumen and color settings.
OPTICS -- Volumetric illumination is achieved by creating an optimal mix of light to walls, partitions and vertical and horizontal work surfaces -- rendering the interior space, objects and occupants in a more balanced, complimentary luminous environment. A high performance acrylic diffuser conceals LED's and efficiently delivers light in a volumetric distribution.
LISTINGS -- CSA certified to meet US and Canadian standards. Damp location listed. IC rated.
DesignLights Consortium (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified.
WARRANTY -- 5-year limited warranty.
