Home > Lithonia Lighting > Lithonia STL4 48L GZ10 EL14L LP835 4' LED Wraparound, 4800 Lumens, Dims to 10%, 1400 Nominal Lumen Battery pack, 3500K

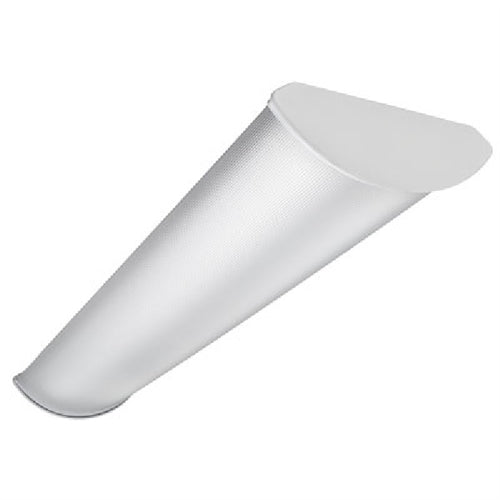

Lithonia STL4 48L GZ10 EL14L LP835 4' LED Wraparound, 4800 Lumens, Dims to 10%, 1400 Nominal Lumen Battery pack, 3500K
Lithonia STL4 48L GZ10 EL14L LP835 4' LED Wraparound, 4800 Lumens, Dims to 10%, 1400 Nominal Lumen Battery pack, 3500K
Regular price
Price:
$628.42
Regular price
Price:
Sale price
$628.42
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE -- The STL combines digital LED lighting and controls technologies with high-performance optical design to offer the most advanced surface-mount luminaire for general ambient lighting applications.
INTENDED USE -- The STL combines digital LED lighting and controls technologies with high-performance optical design to offer the most advanced surface-mount luminaire for general ambient lighting applications.
High-efficacy light engine delivers long life and excellent color, ensuring a superior quality lighting installation that is highly efficient and sustainable.
CONSTRUCTION -- Housing is roll formed from code-gauge steel.
Impact modified linear-faceted refractor with light diffusing film. Refractor attaches to die cast ends by simple hook and pin design with controlled tension provided by sonically welded end plate, providing secure installation and easy maintenance.
Decorative die-cast end caps provide added durability.
Finish: All metal parts are post-painted in white polyester powder coat for smooth, finished edges and uniform light distribution. Natural aluminum finish available on end caps (see Options).
Injection-molded plastic light traps prevent light leaks between shielding and end plates and centers diffuser on channel.
OPTICS -- Volumetric illumination is achieved by creating an optimal mix of light to vertical and horizontal work surfaces, rendering interior space, objects and occupants in a more balanced luminous environment.
Light distribution is carefully controlled at high angles, providing just enough luminous flux to create the volumetric effect.
Angled mounting surface combined with crescent-shape linear faceted refractor system obscures and integrates individual LED images and uniformly washes fixture surface with light.
ELECTRICAL -- Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. STL is rated to deliver L90 performance at 60,000 hours. The LEDs have a CRI of 82.
eldoLED driver options deliver choice of dimming range and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI.
Optional nLight embedded controls continuously monitor system performance, allow for constant lumen management / compensation function, facilitate simple “plug-and-play” network and controls upgrading via Cat-5 cable. Ballast disconnect provided where required to comply with US and Canadian codes.
LISTINGS -- CSA certified to meet U.S. and Canadian standards.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Patents pending. Damp listed.
WARRANTY -- 5-year limited warranty.
CONSTRUCTION -- Housing is roll formed from code-gauge steel.
Impact modified linear-faceted refractor with light diffusing film. Refractor attaches to die cast ends by simple hook and pin design with controlled tension provided by sonically welded end plate, providing secure installation and easy maintenance.
Decorative die-cast end caps provide added durability.
Finish: All metal parts are post-painted in white polyester powder coat for smooth, finished edges and uniform light distribution. Natural aluminum finish available on end caps (see Options).
Injection-molded plastic light traps prevent light leaks between shielding and end plates and centers diffuser on channel.
OPTICS -- Volumetric illumination is achieved by creating an optimal mix of light to vertical and horizontal work surfaces, rendering interior space, objects and occupants in a more balanced luminous environment.
Light distribution is carefully controlled at high angles, providing just enough luminous flux to create the volumetric effect.
Angled mounting surface combined with crescent-shape linear faceted refractor system obscures and integrates individual LED images and uniformly washes fixture surface with light.
ELECTRICAL -- Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. STL is rated to deliver L90 performance at 60,000 hours. The LEDs have a CRI of 82.
eldoLED driver options deliver choice of dimming range and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI.
Optional nLight embedded controls continuously monitor system performance, allow for constant lumen management / compensation function, facilitate simple “plug-and-play” network and controls upgrading via Cat-5 cable. Ballast disconnect provided where required to comply with US and Canadian codes.
LISTINGS -- CSA certified to meet U.S. and Canadian standards.
DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Patents pending. Damp listed.
WARRANTY -- 5-year limited warranty.
