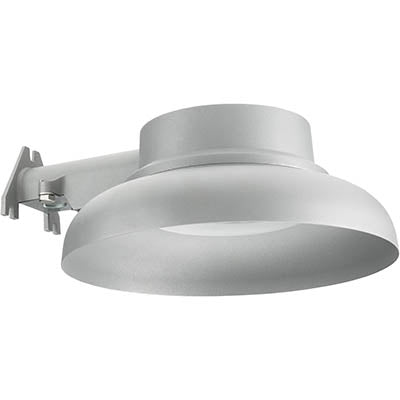

Lithonia TDD LED P1 40K 120 PE DNA M4 31W LED Outdoor Area Light, 3096 Lumens, 4000K Color Temperature, 120 Volts, Photocell, Grey Finish
Lithonia TDD LED P1 40K 120 PE DNA M4 31W LED Outdoor Area Light, 3096 Lumens, 4000K Color Temperature, 120 Volts, Photocell, Grey Finish
Regular price
Price:
$131.46
Regular price
Price:
Sale price
$131.46
Unit price
per
MODEL: Lithonia-TDD-LED-98925
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
The popular TDD LED luminaire is now available with long-lasting, energy-efficient LED technology. Featuring a classic dayform, the TDD LED offers a fresh update to a traditional appearance and is powered by advanced LEDs. The TDD LED luminaire is powerful yet energy efficient, capable of replacing up to a 100W metal halide luminaire while saving up to 84% in energy costs. Offering an expected service life of more than 10 years, the TDD LED eliminates frequent lamp and ballast replacements associated with traditional technologies.
INTENDED USE
The energy savings, long life and easy-to-install design of the TDD LED make it the smart choice for building-and post-mounted doorway, pathway and yard illumination for nearly any facility.
CONSTRUCTION
Die-cast aluminum housing with span aluminum shroud, has an impact-resistant, polycarbonate lens which protects the LEDs. The fixture is sealed against moisture and environmental contaminants.
FINISH
Exterior parts are protected by a thermoset powder-coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a minimum 2 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling
OPTICS
Protective polycarbonate lens covers the light engine’s LEDs. Light engines are available in 4000K (80 min. CRI) configurations.
ELECTRICAL
Light engine consists of two multi-chip, high-output LEDs mounted on an integral aluminum heat sink to maximize heat dissipation and promote long life (L98/50,000 hours at 40 degree C). 2.5kV surge protection. Electronic driver operates at 120V. Integrated photocell is standard. No user serviceable parts.
INSTALLATION
Easily mounts to a wooden post or pole using 2" lag screws, included. Compatible with OMA-1-5/8" mounting arm, sold separately.
LISTINGS
UL Listed to U.S. and Canadian safety standards for wet locations. ENERGY STAR certified product.
WARRANTY
Five-year limited warranty.
INTENDED USE
The energy savings, long life and easy-to-install design of the TDD LED make it the smart choice for building-and post-mounted doorway, pathway and yard illumination for nearly any facility.
CONSTRUCTION
Die-cast aluminum housing with span aluminum shroud, has an impact-resistant, polycarbonate lens which protects the LEDs. The fixture is sealed against moisture and environmental contaminants.
FINISH
Exterior parts are protected by a thermoset powder-coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a minimum 2 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling
OPTICS
Protective polycarbonate lens covers the light engine’s LEDs. Light engines are available in 4000K (80 min. CRI) configurations.
ELECTRICAL
Light engine consists of two multi-chip, high-output LEDs mounted on an integral aluminum heat sink to maximize heat dissipation and promote long life (L98/50,000 hours at 40 degree C). 2.5kV surge protection. Electronic driver operates at 120V. Integrated photocell is standard. No user serviceable parts.
INSTALLATION
Easily mounts to a wooden post or pole using 2" lag screws, included. Compatible with OMA-1-5/8" mounting arm, sold separately.
LISTINGS
UL Listed to U.S. and Canadian safety standards for wet locations. ENERGY STAR certified product.
WARRANTY
Five-year limited warranty.
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
