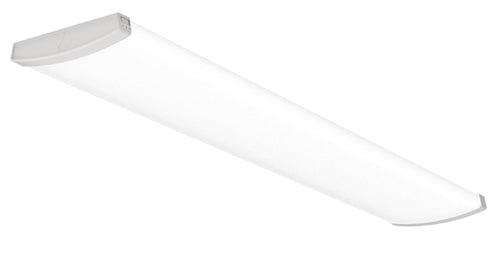

Lithonia TRUM 48 ALO6 CMP 8SWW2 ZT MVOLT 4' LED Wrap, Medium Body, Curved Microprismatic Diffuser, Selectable 4000/5000/6000 Lumens, 120-277V, Selectable CCT 3000/4000/5000K, 0-10V
Lithonia TRUM 48 ALO6 CMP 8SWW2 ZT MVOLT 4' LED Wrap, Medium Body, Curved Microprismatic Diffuser, Selectable 4000/5000/6000 Lumens, 120-277V, Selectable CCT 3000/4000/5000K, 0-10V
Regular price
Price:
$109.97
Regular price
Price:
Sale price
$109.97
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE:
INTENDED USE:
The TruWrap LED wrap platform was designed with the renovator in mind, while compatible with new construction. It’s no mystery the flexibility of the TruWrap will keep renovation simple. The platform is designed to be backwards compatible with existing legacy wraps to perfectly cover blemishes from older fixtures. Conduit end feed and through wire capability makes challenging installations a breeze. The option to adjust lumens and color temperature grants the perfect amount of light to any room. This is capped off with standard 0-10v dimming and a uniform microprismatic diffuser that offers floor to ceiling light. All this means the TruWrap shines in, hallways, laundry rooms, offices, utility work areas, and more.
CONSTRUCTION:
The LED wrap is constructed of a metal chassis with decorative captive polycarbonate end caps.
The microprismatic diffuser provides even illumination and softens the appearance of the
LEDs for improved aesthetics.
OPTICS:
ALO4 8SWW2: Wraps are switchable between 2,000, 3,000, and 4,000 lumens.
ALO6 8SWW2: Wraps are switchable between 4,000, 5,000, and 6,000 lumens.
ALO26 8SWW2: Wraps are switchable between 5,500, 6,500, and 7,500 lumens.
Wrap color temperature is switchable between 3000K, 4000K and 5000K.
80CRI
Diffuser utilizes state of the art Microprismatic technology which provides a uniformly illuminated surface with no lamp image. This also provides unmatched volumetric floor to ceiling light and a modern aesthetic.
ELECTRICAL:
Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000). Fixture mounts to recessed junction box, electrical connections must be made inside junction box.
LISTINGS:
CSA certified to US and Canadian standards. Listed for damp locations, at -4–104°F (-20–40°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY:
5-year limited warranty.
The LED wrap is constructed of a metal chassis with decorative captive polycarbonate end caps.
The microprismatic diffuser provides even illumination and softens the appearance of the
LEDs for improved aesthetics.
OPTICS:
ALO4 8SWW2: Wraps are switchable between 2,000, 3,000, and 4,000 lumens.
ALO6 8SWW2: Wraps are switchable between 4,000, 5,000, and 6,000 lumens.
ALO26 8SWW2: Wraps are switchable between 5,500, 6,500, and 7,500 lumens.
Wrap color temperature is switchable between 3000K, 4000K and 5000K.
80CRI
Diffuser utilizes state of the art Microprismatic technology which provides a uniformly illuminated surface with no lamp image. This also provides unmatched volumetric floor to ceiling light and a modern aesthetic.
ELECTRICAL:
Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000). Fixture mounts to recessed junction box, electrical connections must be made inside junction box.
LISTINGS:
CSA certified to US and Canadian standards. Listed for damp locations, at -4–104°F (-20–40°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY:
5-year limited warranty.
Download PDF Specification
Download PDF Instruction ManualShare your knowledge of this product. Be the first to write a review »
