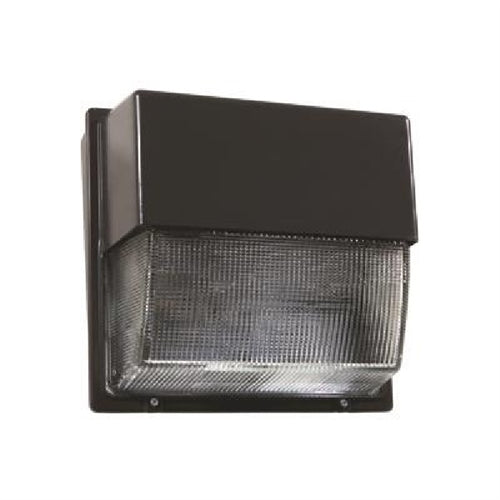

Lithonia TWP LED ALO 50K 11-48W Wallpack LED Light, 1,166 - 5,174 Lumens, 4000K, 120-277V, Textured Dark Bronze
Lithonia TWP LED ALO 50K 11-48W Wallpack LED Light, 1,166 - 5,174 Lumens, 4000K, 120-277V, Textured Dark Bronze
Regular price
Price:
$602.95
Regular price
Price:
Sale price
$602.95
Unit price
per
MODEL: Lithonia-TWP-LED-110390
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE:
CONSTRUCTION:
Die-cast aluminum housing has an impact-resistant, tempered glass lens for TWH, polycarbonate for TWP that is fully gasketed. Modular design allows for ease of maintenance. The LED driver is mounted to the front casting to thermally isolate it from the light engine for low operating temperature and long life. Housing is completely sealed against moisture and environmental contaminants.
ELECTRICAL:
Light engine(s) consist of 72 high-efficacy LEDs mounted to a metal-core circuit board and integral aluminum heat sink to maximize heat dissipation and promote long life (L93/100,000 hrs at 25°C). The electronic driver has a power factor of >90%, THD <20%, and a minimum 6 KV surge rating. When ordering the SPD option, a separate surge protection device is installed within the luminaire which meets a minimum Category C low operation (per ANSI/IEEE C62.41.2)
INSTALLATION
Back housing is separated from front housing, eliminating ballast weight and promoting easy handling. Top 3/4” threaded wiring access. Back access through removable 3/4” knockout. Feed-thru wiring can be achieved by using a condulet tee. Mount on any vertical surface. Not recommended in applications where a sprayed stream of water can come in direct contact with glass lens.
LISTINGS:
UL listed for use in the US and Canada. Suitable for use in wet locations. Rated for -40°C minimum operating temperature. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY:
5-year limited warranty.
INTENDED USE:
The energy savings, long life and easy-to-install design of the TWH LED make it the smart choice for building-mounted doorway and pathway illumination for nearly any facility.
CONSTRUCTION:
Die-cast aluminum housing has an impact-resistant, tempered glass lens for TWH, polycarbonate for TWP that is fully gasketed. Modular design allows for ease of maintenance. The LED driver is mounted to the front casting to thermally isolate it from the light engine for low operating temperature and long life. Housing is completely sealed against moisture and environmental contaminants.
ELECTRICAL:
Light engine(s) consist of 72 high-efficacy LEDs mounted to a metal-core circuit board and integral aluminum heat sink to maximize heat dissipation and promote long life (L93/100,000 hrs at 25°C). The electronic driver has a power factor of >90%, THD <20%, and a minimum 6 KV surge rating. When ordering the SPD option, a separate surge protection device is installed within the luminaire which meets a minimum Category C low operation (per ANSI/IEEE C62.41.2)
INSTALLATION
Back housing is separated from front housing, eliminating ballast weight and promoting easy handling. Top 3/4” threaded wiring access. Back access through removable 3/4” knockout. Feed-thru wiring can be achieved by using a condulet tee. Mount on any vertical surface. Not recommended in applications where a sprayed stream of water can come in direct contact with glass lens.
LISTINGS:
UL listed for use in the US and Canada. Suitable for use in wet locations. Rated for -40°C minimum operating temperature. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY:
5-year limited warranty.
