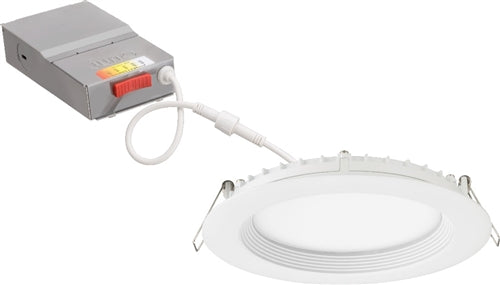

Lithonia WF6 REG SWW5 90CRI MW M6 6" Wafer-Thin Housing-Free LED Downlight, Switchable 2700K-5000K, 90 CRI, Matte White
Lithonia WF6 REG SWW5 90CRI MW M6 6" Wafer-Thin Housing-Free LED Downlight, Switchable 2700K-5000K, 90 CRI, Matte White
Regular price
Price:
$26.17
Regular price
Price:
Sale price
$26.17
Unit price
per
MODEL: Lithonia-WF6-LED-1069665
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
The 6" regressed round baffle with 5CCT Switchable White technology provides high-quality light output and efficiency featuring a switch for easy color temperature adjustment to choose between 2700K, 3000K, 3500K, 4000K, or 5000K - while eliminating the need for recessed housings.
Housing
The 6" regressed round baffle with 5CCT Switchable White technology provides high-quality light output and efficiency featuring a switch for easy color temperature adjustment to choose between 2700K, 3000K, 3500K, 4000K, or 5000K - while eliminating the need for recessed housings.
- Regressed lens and baffle trim design to reduce glare for comfortable and even illumination
- Canless - no can required; equals easy to install and less labor
- 5 selectable color temperatures to choose with a switch ranging from warm (2700K) to daylight (5000K) allowing customization for endless applications
Housing
- Die cast aluminum mounting frame with integral polycarbonate flange provides passive thermal cooling achieving L70 at 50,000 hours
- Lens regressed to .5" with baffle trim design to reduce glare for comfortable and even illumination
- FT4 3-pin plenum rated cable connector to connect from module to remote driver box
- Steel spring clip for easy installation. 6" cut out template is provided to ensure a correct sized hole is cut into ceiling for proper installation of the trim.
- Size of hole should not exceed 6 ¼ inches for this product. Can be installed from 3/8" to 1 ½" ceiling thickness
- Can be removed from below the ceiling for service or replacement.
- LEDs are integrated to one piece high purity aluminum, thermally conductive housing to provide uninterrupted heat transfer to ensure long life of the LED
- Switchable white color temperature from 2700K, 3000K, 3500K, 4000K, 5000K
- 90 CRI minimum
- Color accuracy within 4 step McAdams Ellipse at the end CCT (2700K and 5000K), within 6 step McAdams Ellipse in the middle CCT (3000K, 3500K, and 4000K)
- Dimming 100% to 10% with most standard incandescent dimers (see list of approved dimmers).
- Connect directly to 120V Class-2 (CAN ICES-005 (B) / NMB-005 (B)) LED driver. 120V 60 Hz constant current driver provides noise free operation
- IC rated driver with convenience of a switch to choose between 5 selectable color temperature options ranging from 2700K (warm white), 3000K, 3500K, 3000K, 4000K, or 5000K (daylight)
- The isolated driver integrated inside steel remote box with four 7/8" knockouts with slots for pryout. Suitable for pulling wires with the 12 cubic-inch wiring compartment to accommodate up to (6) 14 gauge insulated conductors; making the Wafer LED Downlights much easier to wire in 2in/2out (plus ground) daisy-chain applications and contractor friendly.
- 2" plenum space required for installation of the remote driver box Edge-lit LED technology uses light guided plate to distribute light.
- Polycarbonate lens provides even illumination throughout the space
- Efficient system that can produce over 950 lumens while using 13W
- Replaces 75W incandescent.
- Rated for 50,000 hours at 70% lumen maintenance.
- CSA certified to US and Canadian safety standards
- ENERGY STAR certified product
- Suitable for wet location
- Air-Loc certified in accordance with ASTM E283-2004
- NOM Certified
- Can be used to comply with California Title 24 Part 6 High Efficacy LED light Source Requirements
- U.S. Patent No. 10,681,784.
Warranty 5-year limited warranty
