Home > Lithonia Lighting > Lithonia WF6 SQ SM ALO41 SWW5 90CRI MW 6 inch LED Square Recessed Downlight, Canless, 13 Watts, Adjustble Lumen output 650/850/1000, 2700K-5000K, 90 CRI, Matte White
Lithonia WF6 SQ SM ALO41 SWW5 90CRI MW 6 inch LED Square Recessed Downlight, Canless, 13 Watts, Adjustble Lumen output 650/850/1000, 2700K-5000K, 90 CRI, Matte White
Lithonia WF6 SQ SM ALO41 SWW5 90CRI MW 6 inch LED Square Recessed Downlight, Canless, 13 Watts, Adjustble Lumen output 650/850/1000, 2700K-5000K, 90 CRI, Matte White
Regular price
Price:
$28.05
Regular price
Price:
Sale price
$28.05
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
HOUSING
HOUSING
- Aluminum die cast outer frame. Durable, powder coat paint to prevent rust
- FT4 3-pin plenum rated cable connector to connect from module to remote driver box

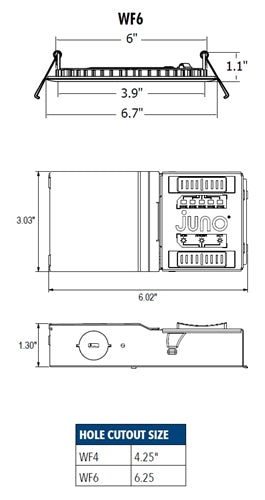

- Steel spring clip for easy installation. 4" or 6" cut out template is provided to ensure a correct sized hole is cut into ceiling for proper installation of the trim. Size of hole should not exceed 4-1/4" for the WF4 and 6-1/4" for the WF6
- Can be installed from 3/8" to 1 1/2" ceiling thickness
- Can be removed from below the ceiling for service or replacement.
- Low/Medium/High lumen output settings and choice of 2700K, 3000K, 3500K, 4000K or 5000K color temperatures
- 90 CRI minimum
- Color accuracy within 4 step McAdams Ellipse at the end CCT (2700K and 5000K), within 6 step McAdams Ellipse in the middle CCT (3000K, 3500K, and 4000K)
- Dimming 100% to 10% with most standard incandescent dimers (see list of approved dimmers).
- Connect directly to 120V Class-2 (CAN ICES-005 (B) / NMB-005 (B)) LED driver
- 120V 60 Hz constant current driver provides noise free operation
- IC rated driver with convenience of a switch to choose between 5 selectable color temperature options ranging from 2700K (warm white), 3000K, 3500K, 4000K, or 5000K (daylight)
- The isolated driver integrated inside steel remote box with four 7/8" knockouts with slots for pryout. Suitable for pulling wires with the 12 cubic-inch wiring compartment to accommodate up to (6) 14 gauge insulated conductor or (4) 12 gauge insulated conductors, making the Wafer LED Downlights much easier to wire in 2in/2out (plus ground) daisychain applications and contractor friendly
- 2" plenum space required for the installation of the WF6 driver box; 3"plenum space required for the installation of the WF4 driver box
- Suitable for installation in t-grid and drop ceiling applications with universal new construction pan.
- Edge-lit technology is used to distribute light comfortably into the occupancy space.
- Polycarbonate lens provides even illumination throughout the space
- Efficient system that can produce over 750 lumens while using 9W with the WF4 and over 1000 lumens while using 13W with the WF6
- Replaces 65W incandescent (WF4) and 75W incandescent (WF6).
- Rated for 50,000 hours at 70% lumen maintenance.
- CSA certified to US and Canadian safety standards
- ENERGY STAR certified product
- Suitable for wet location, covered ceiling
- Air-Loc certified in accordance with ASTM E283-2004
- NOM Certified
- Can be used to comply with California Title 24 Part 6 High Efficacy LED light Source Requirements
- U.S. Patent No. 10,681,784.
WARRANTY
- 5-year limited warranty.
