Home > Lithonia Lighting > Lithonia WF8 ALO42 SWW5 90CRI MVOLT MW M6 8" 22W Wafer-Thin LED Downlight, Switchable 1500/1750/1950 Lumens, Selectable CCT 2700K/3000K/3500K/4000K/5000K, 90 CRI, 0-10V, Matte White
Lithonia WF8 ALO42 SWW5 90CRI MVOLT MW M6 8" 22W Wafer-Thin LED Downlight, Switchable 1500/1750/1950 Lumens, Selectable CCT 2700K/3000K/3500K/4000K/5000K, 90 CRI, 0-10V, Matte White
Lithonia WF8 ALO42 SWW5 90CRI MVOLT MW M6 8" 22W Wafer-Thin LED Downlight, Switchable 1500/1750/1950 Lumens, Selectable CCT 2700K/3000K/3500K/4000K/5000K, 90 CRI, 0-10V, Matte White
Regular price
Price:
$41.19
Regular price
Price:
Sale price
$41.19
Unit price
per
Ordering a Large Quantity?
Request a quote
description
HOUSING
Multi-volt (120-277V, 50/60Hz) proprietary remote LED driver/splice box, with two (2) additional low-voltage wires for 0-10v dimming, down to 10% (depending on dimmer model and application: see list of approved dimmers) . High efficient driver with power factor > 0.9. Ambient operating temperature: -40°F (-40°C) to +104°F (+40°C).
OPTICAL SYSTEM
- Die cast aluminum mounting frame provides passive thermal cooling achieving L70 at 50,000 hours
- FT4 3-pin plenum rated cable connector to connect from module to remote driver box

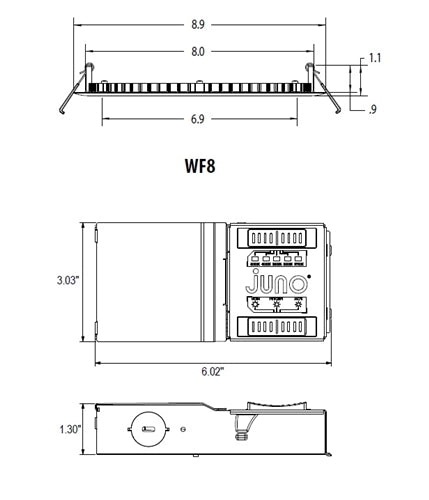

- Steel spring clip for easy installation. An 8" cut out template is provided to ensure a correct sized hole is cut into ceiling for proper installation of the trim. Size of hole should not exceed 8 1/4 inches for this product. • Can be installed from 3/8" to 1 ½" ceiling thickness
- Can be removed from below the ceiling for service or replacement.
- LEDs are integrated to one piece high purity aluminum, thermally conductive housing to provide uninterrupted heat transfer to ensure long life of the LED Switchable white color temperature from 2700K, 3000K, 3500K, 4000K, 5000K
- 90 CRI minimum
- Color accuracy within 4 step McAdams Ellipse at the end CCT (2700K and 5000K), within 7 step McAdams Ellipse in the middle CCT (3000K, 3500K, and 4000K).
Multi-volt (120-277V, 50/60Hz) proprietary remote LED driver/splice box, with two (2) additional low-voltage wires for 0-10v dimming, down to 10% (depending on dimmer model and application: see list of approved dimmers) . High efficient driver with power factor > 0.9. Ambient operating temperature: -40°F (-40°C) to +104°F (+40°C).
OPTICAL SYSTEM
- Edge-lit technology in conjunction with a high quality polycarbonate lens ensures even illumination of the lens (no dark spots), and minimizes glare for occupants
- Efficient system that can produce over 2000 lumens while using only 22W • Replaces 100W incandescent.
LIFE
Rated for 50,000 hours at 70% lumen maintenance.
LABELSRated for 50,000 hours at 70% lumen maintenance.
- CSA certified to US and Canadian safety standards
- ENERGY STAR certified product
- Suitable for wet location, covered ceiling
- Air-Loc certified in accordance with ASTM E283-2004
- NOM Certified
- Can be used to comply with California Title 24 Part 6 High Efficacy LED light Source Requirements
- U.S. Patent No. 10,681,784.
WARRANTY
5-year limited warranty.
5-year limited warranty.
