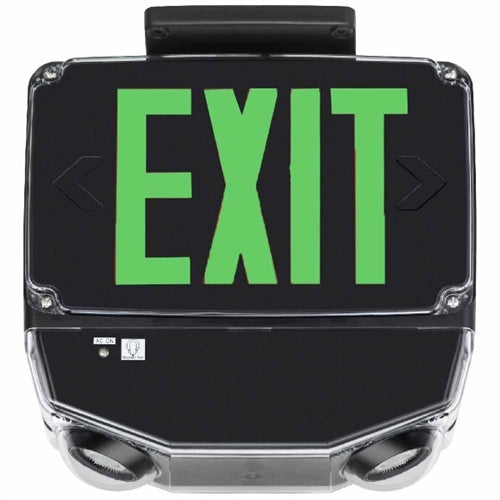

Lithonia WLTC B 2 G SD TPS M4 Wet Location LED Green Exit Sign Combo with Battery Backup, Black Double Face, Green Letter
Lithonia WLTC B 2 G SD TPS M4 Wet Location LED Green Exit Sign Combo with Battery Backup, Black Double Face, Green Letter
Regular price
Price:
$604.28
Regular price
Price:
Sale price
$604.28
Unit price
per
MODEL: Lithonia-WLTC-106731
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
INTENDED USE -- Ideal for wet location areas requiring combination exit sign and emergency lighting that are subject to saturation with non-mechanically delivered water.
CONSTRUCTION -- White, compact, contemporary design. Housing also available in black. Engineeringgrade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. Universal directional Chevron inserts are easily removed and reinserted. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. Rugged, heavy-duty, polycarbonate clear housing lens.
OPTICS -- Low energy consumption — fewer than 5 watts. The typical life of the exit LED lamp is 10 years, based on continuous operation.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: -- Sealed, maintenance free nickel-cadmium battery delivers 90 minutes rated capacity. Magnetic test switch (magnet included) provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
Self-diagnostic testing (SD Option Only) for 30 seconds every 30 days, 30 minutes every 180 days and a 90-minute annual test. Diagnostic evaluation of LED light source, charging and battery condition.

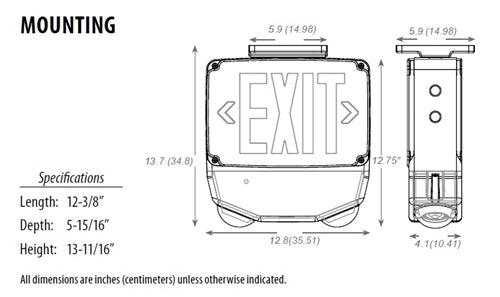

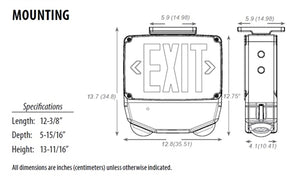

INSTALLATION -- Universal (top, end or back mount), canopy included. Junction box hole pattern for 4” octagon mounting. Flexible conduit entry.
LISTINGS -- UL listed. Wet location listed. Standard temperature rating 32-122°F (0-50°C), CW (cold weather) temperature rating -4°F to 122°F (-20°C to 50°C). Meets UL 924, NFPA 101 (current Life Safety Code) and NFPA 70-NEC.
WARRANTY -- 5-year limited warranty. (Battery is prorated).
INTENDED USE -- Ideal for wet location areas requiring combination exit sign and emergency lighting that are subject to saturation with non-mechanically delivered water.
CONSTRUCTION -- White, compact, contemporary design. Housing also available in black. Engineeringgrade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. Universal directional Chevron inserts are easily removed and reinserted. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. Rugged, heavy-duty, polycarbonate clear housing lens.
OPTICS -- Low energy consumption — fewer than 5 watts. The typical life of the exit LED lamp is 10 years, based on continuous operation.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: -- Sealed, maintenance free nickel-cadmium battery delivers 90 minutes rated capacity. Magnetic test switch (magnet included) provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
Self-diagnostic testing (SD Option Only) for 30 seconds every 30 days, 30 minutes every 180 days and a 90-minute annual test. Diagnostic evaluation of LED light source, charging and battery condition.
INSTALLATION -- Universal (top, end or back mount), canopy included. Junction box hole pattern for 4” octagon mounting. Flexible conduit entry.
LISTINGS -- UL listed. Wet location listed. Standard temperature rating 32-122°F (0-50°C), CW (cold weather) temperature rating -4°F to 122°F (-20°C to 50°C). Meets UL 924, NFPA 101 (current Life Safety Code) and NFPA 70-NEC.
WARRANTY -- 5-year limited warranty. (Battery is prorated).
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
