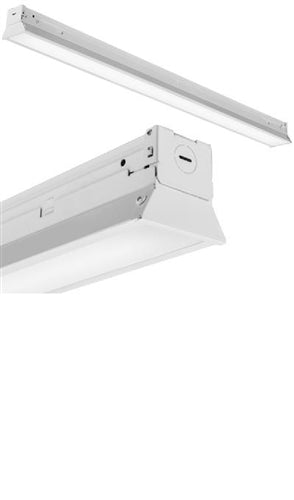

Lithonia ZL1F L48 4500LM MDD MVOLT 35K 80CRI CS93W WH 38W 48" Architectural LED Striplight, 4500 Lumens, Medium Diffuser, 120-277V, 3500K, 80 CRI, 600V SEOOW White Cord, White Finish
Lithonia ZL1F L48 4500LM MDD MVOLT 35K 80CRI CS93W WH 38W 48" Architectural LED Striplight, 4500 Lumens, Medium Diffuser, 120-277V, 3500K, 80 CRI, 600V SEOOW White Cord, White Finish
Regular price
Price:
$263.18
Regular price
Price:
Sale price
$263.18
Unit price
per
MODEL: Lithonia-ZL1F-110406
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE -- Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T8 lengths. Ideal for use in commercial, retail, office, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/ or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION -- Compact-design channel and cover are formed from code-gauge cold-rolled steel.
Easy to install six-point row aligner included for continuous row mounting.
INTENDED USE -- Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T8 lengths. Ideal for use in commercial, retail, office, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/ or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION -- Compact-design channel and cover are formed from code-gauge cold-rolled steel.
Easy to install six-point row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS -- Replaceable diffuse lens eliminates pixelation and offers ingress protection from debris.
ELECTRICAL -- Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications (see PLR_ ordering information). Electronic LED driver is rated for 75 input watts maximum (see
Operational Data on page 3 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 1.5KV AT 0.75KA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80CRI or 90CRI at 3000 K, 3500 K, 4000 K or 5000 K.
Lumen output up to 1,500 lumens per foot. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION -- Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Six-point aligner locks in place for easy continuous row mounting.
LISTINGS -- CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 86°F (30°C).
BUY AMERICAN ACT -- Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations.
WARRANTY -- 5-year limited warranty.
OPTICS -- Replaceable diffuse lens eliminates pixelation and offers ingress protection from debris.
ELECTRICAL -- Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications (see PLR_ ordering information). Electronic LED driver is rated for 75 input watts maximum (see
Operational Data on page 3 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 1.5KV AT 0.75KA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80CRI or 90CRI at 3000 K, 3500 K, 4000 K or 5000 K.
Lumen output up to 1,500 lumens per foot. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION -- Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Six-point aligner locks in place for easy continuous row mounting.
LISTINGS -- CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 86°F (30°C).
BUY AMERICAN ACT -- Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations.
WARRANTY -- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
