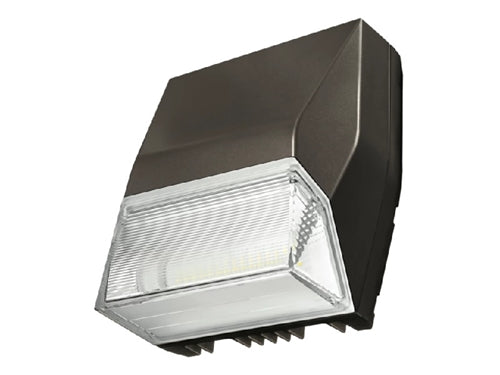

Lumark AXCS1ARL 14W Axcent LED Wall Light, Refractive Lens, 4000K, Carbon Bronze Finish, with 50 Degrees C High Ambient
Lumark AXCS1ARL 14W Axcent LED Wall Light, Refractive Lens, 4000K, Carbon Bronze Finish, with 50 Degrees C High Ambient
Regular price
Price:
$173.58
Regular price
Price:
Sale price
$173.58
Unit price
per
MODEL: Lumark-AXCS1ARL-HA
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Die-cast aluminum housing
- External back fin design extracts heat from the surface to thermally optimize design for longer luminaire life
- Dark Sky Approved (Fixed mount, Full cutoff, and 3000K CCT only)
- Silicone-sealed optical LED chamber
- Acrylic refractive or full cutoff lens options for Type IV distributions
- Standard universal voltage (120-277V, 50/60Hz)
- Driver incorporates 6kV surge protection
- -40°C minimum operating temperature
- 40°C maximum operating temperature
- <20% total harmonic distortion
- 0-10V dimming driver is standard with leads external to the fixture
- Steel wedge mounting plate fits directly to 4" standard j-box or directly to wall with the Hook-N-Lock" mechanism
- Stainless steel set screws
- Lumen Select Back Box accessory offers four 1/2" NPT conduit entry wire ways. Resistor Pack combinations allow field-dimming of 75% or 50% when connected to luminaire dimming leads
- Not suitable for indoor use when installed in inverted/uplight orientation
- Optional integral cold weather battery emergency egress includes emergency operation test switch, an AC-ON indicator light and a premium, maintenance-free battery pack
- The separate emergency lighting LEDs are wired to provide redundant emergency lighting. Listed to UL Standard 924, Emergency Lighting
- Five-stage super TGIC polyester powder coat paint, 2.5 mil nominal thickness
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
