Home > Halo Lighting > Lumark LAS100P-T5 LED Area Light, Pole Mount Arm, 1,000W HID Equivalent, Type V Distribution, 120-277V, Bronze

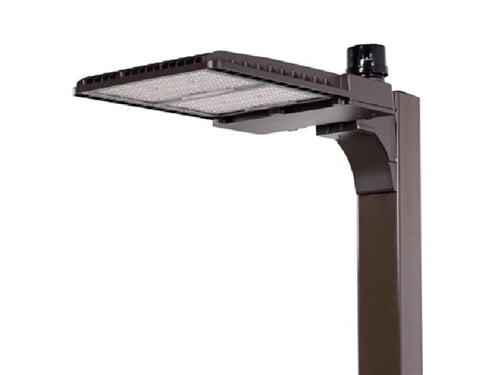

Lumark LAS100P-T5 LED Area Light, Pole Mount Arm, 1,000W HID Equivalent, Type V Distribution, 120-277V, Bronze
Lumark LAS100P-T5 LED Area Light, Pole Mount Arm, 1,000W HID Equivalent, Type V Distribution, 120-277V, Bronze
Regular price
Price:
$417.45
Regular price
Price:
Sale price
$417.45
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Die-cast aluminum housing with hinged, die-cast aluminum door

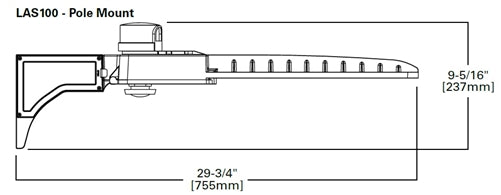

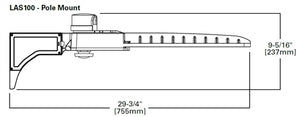

- Pole mount arm mounts directly to minimum 4 inch round or square poles (recommended Type N drill pattern)
- Slipfitter mounts 2-3/8” vertical or horizontal tenons; Downward facing only
- IP65 rated housing enclosure
- 10-position lumen select switch accessible via hinged housing door
- UV-resistant polycarbonate optics
- Full cutoff when mounted at 0 degrees tilt
- 4000K CCT, 70CRI
- IP66 optical enclosures
- 10-position lumen selectable. Internal toggle switch for adjusting luminaire lumens.
- Lumen packages range from 4,900 up to 34,000 lumens (30W - 250W). Default settings for selectable luminaires are maximum lumen output.
- Twistlock photocontrol receptacle is included for default dusk-to-dawn operation.
- The HV models include a shorting cap instead of a photocontrol receptacle.
- -40 degrees C minimum operating temperature
- 40 degrees C maximum operating temperature
- >0.9 power factor
- <20% total harmonic distortion
- Class P drivers incorporate internal MOVs designed to withstand 6kV of surge
- 0-10V dimming driver is standard
- 3-PIN NEMA twistlock photocontrol receptacle and photocontrol included (UNV configurations)
- Standard color is bronze
- Finish only warrantied for a period of 1 year
- LAS45S / LAS45P: 14.0 lbs. (6.4 kgs.)
- LAS100SS / LAS100P: 18.0 lbs. (8.2 kgs.)
- Five year limited warranty
