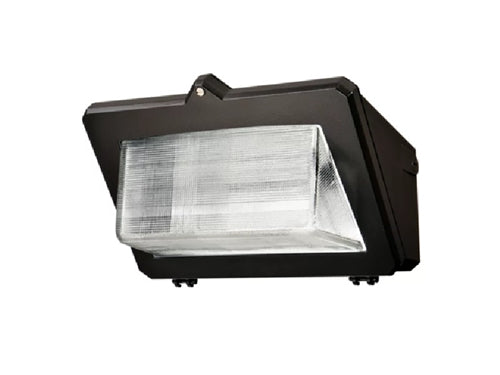

Home > Halo Lighting > Lumark LDWP-GL-3B-ED 27W LED Wallpack, Solid State Light-Emitting Diodes, Borosilicate Glass Door, 3 Package, 3333 Lumens, 5000K, Electronic LED Dimming, 0-10V Driver
Lumark LDWP-GL-3B-ED 27W LED Wallpack, Solid State Light-Emitting Diodes, Borosilicate Glass Door, 3 Package, 3333 Lumens, 5000K, Electronic LED Dimming, 0-10V Driver
Lumark LDWP-GL-3B-ED 27W LED Wallpack, Solid State Light-Emitting Diodes, Borosilicate Glass Door, 3 Package, 3333 Lumens, 5000K, Electronic LED Dimming, 0-10V Driver
Regular price
Price:
$495.00
Regular price
Price:
Sale price
$495.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Housing
Housing
Rugged one-piece die-cast aluminum housing and hinged, removable die-cast aluminum door. One-piece silicone gasket seals the optical chamber. UL 1598 wet location listed and IP66 ingress protection rated.
Electrical
Ballasts, LED driver and related electrical components are hard mounted to the die-cast housing for optimal heat sinking and operating efficiency. Wiring is extended through a silicone gasket at the back of the housing. Three 1/2” threaded conduit entry points allow for thru-branch wiring. LED thermal management system incorporates both conduction and natural convection to transfer heat rapidly away from LED source. Integral LED electronic driver incorporates internal fusing designed to withstand a 6kV surge test and is Class 2 rated for 120-277V with an operating temperature of -40º to 55ºC. Wal- Pak LED systems maintain greater than 93% of the initial light output after 72,000 hours of operation.
UL listed HID high power factor ballasts are Class H insulation rated (high pressure sodium: 250, 400W [-40ºC / -40ºF]. High efficiency HID ballasts are available in 120, 208, 240, 277, 347 and 480V.
Optical
Highly reflective anodized aluminum reflectors provide high efficiency illumination. Optical assemblies include impact resistant borosilicate refractive glass, and full cutoff IESNA compliant configurations. Patented, solid state LED luminaires are thermally optimized with three lumen packages. HID models are offered in horizontal medium or mogulbased metal halide [MP] or high pressure sodium [HP] lamps.
Door Assembly
Single point, captive stainless steel hardware secures the removable hinged door allowing for ease of installation and maintenance. Door assembly is hinged at the bottom for easy removal, installation and re-lamping.
Finish
Finished in five-stage super TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear. Standard color is bronze.
Additional colors available in white, grey, bronze, black, dark platinum and graphite metallic. Consult Electric Bargain Store for a complete selection of standard colors.
Options to meet Buy American and other domestic preference requirements.
Efficiency Standards Notice
Select luminaires are manufactured to USA and California efficiency regulations.
Electrical
Ballasts, LED driver and related electrical components are hard mounted to the die-cast housing for optimal heat sinking and operating efficiency. Wiring is extended through a silicone gasket at the back of the housing. Three 1/2” threaded conduit entry points allow for thru-branch wiring. LED thermal management system incorporates both conduction and natural convection to transfer heat rapidly away from LED source. Integral LED electronic driver incorporates internal fusing designed to withstand a 6kV surge test and is Class 2 rated for 120-277V with an operating temperature of -40º to 55ºC. Wal- Pak LED systems maintain greater than 93% of the initial light output after 72,000 hours of operation.
UL listed HID high power factor ballasts are Class H insulation rated (high pressure sodium: 250, 400W [-40ºC / -40ºF]. High efficiency HID ballasts are available in 120, 208, 240, 277, 347 and 480V.
Optical
Highly reflective anodized aluminum reflectors provide high efficiency illumination. Optical assemblies include impact resistant borosilicate refractive glass, and full cutoff IESNA compliant configurations. Patented, solid state LED luminaires are thermally optimized with three lumen packages. HID models are offered in horizontal medium or mogulbased metal halide [MP] or high pressure sodium [HP] lamps.
Door Assembly
Single point, captive stainless steel hardware secures the removable hinged door allowing for ease of installation and maintenance. Door assembly is hinged at the bottom for easy removal, installation and re-lamping.
Finish
Finished in five-stage super TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear. Standard color is bronze.
Additional colors available in white, grey, bronze, black, dark platinum and graphite metallic. Consult Electric Bargain Store for a complete selection of standard colors.
Options to meet Buy American and other domestic preference requirements.
Efficiency Standards Notice
Select luminaires are manufactured to USA and California efficiency regulations.
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
