Home > Halo Lighting > Lumark NHRS100US 80-290W Night Harrier Large LED Floodlight, Selectable CCT 3000K-4000K-5000K, 70 CRI, 120-277V, Slipfitter Mount

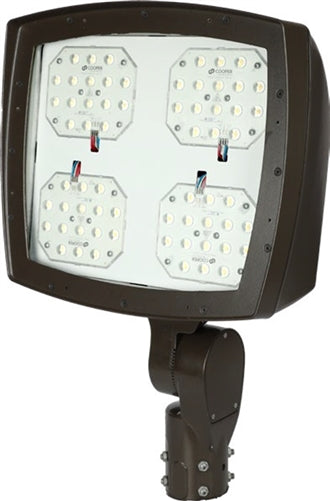

Lumark NHRS100US 80-290W Night Harrier Large LED Floodlight, Selectable CCT 3000K-4000K-5000K, 70 CRI, 120-277V, Slipfitter Mount
Lumark NHRS100US 80-290W Night Harrier Large LED Floodlight, Selectable CCT 3000K-4000K-5000K, 70 CRI, 120-277V, Slipfitter Mount
Regular price
Price:
$1,090.16
Regular price
Price:
Sale price
$1,090.16
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Die-cast aluminum housing
- Durable powder coated surface
- Fully sealed tempered glass
- Top and Side Visor constructed of steel with a poly powder coat finish
- Wire Guard constructed of 11-guage wire in a 1"x1" cell pattern. Chrome color poly powder coat finish
- Removable faceplate allows easy lens replacement. Lens replacement kit must specify finish and ordered separately as an accessory
- Fixture IK08 rating without wire guard accessory
- Selectable configurations offer internal toggle switches for adjusting luminaire CCT and lumens.
- Default settings for selectable luminaires are 4000K CCT and maximum lumen output.
- NEMA 3-PIN twistlock photocontrol receptacle and NEMA 7-PIN twistlock photocontrol receptacles are available as options.
- Suitable for use in 40°C to 40°C ambient temperatures
- >.9 power factor
- <20% total harmonic distortion
- Class P driver incorporates integral 6kV surge protection
- 3 ft type STWA outdoor rated cable with pre-stripped wires included with trunnion and slipfitter mounting options.

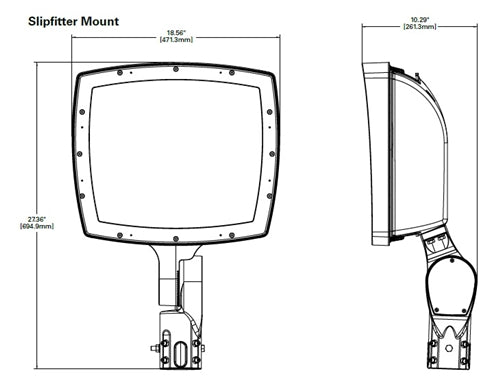

- Slipfitter: Suitable for 2-3/8" OD tenons.
- Trunnion: Suitable for mounting within 4' (1.2 m) of the ground.
- Slipfitter: -5º to +145º in 5º increments
- Trunnion: -90º to +90º in 22.5º increments
- DLC and DLC Premium listed - visit designlights. org to confirm listed variations
- BAA domestic preference option meets BAA requirements. See DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information
- FHWA and FTA agencies are utilizing their BAA rules for BABA compliance. Cooper’s products with a BAA designation are manufactured in the US and utilize a BAA COTS exemption rule for compliance. To verify a configured product with specific accessories and options meet BABA Domestic Preference Requirements; submit this catalog number to Cooper Lighting Quotation team for validation by our Engineering and Manufacturing teams. Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements
- Carbon Bronze standard / other colors available
Typical Applications
- Parking Lot Illumination
- Building lighting
- Sign lighting
- Commercial lighting
EPA
- Effective Projected Area (Sq. Ft.): EPA 2.33
Shipping Data
- Case Dimensions and Approximate Net Weight: 20.6 x 24.2 x 11.9 (in) | 43 lbs.
- Full pallet Dimensions and Approximate Net Weight: 42 x 50 x 52.4 (in) | 735 lbs.
- Maximum pallet height: 54 in.
- Pallet qty: 16
- Layers x Cases: 4 x 4
- Five-year limited warranty
