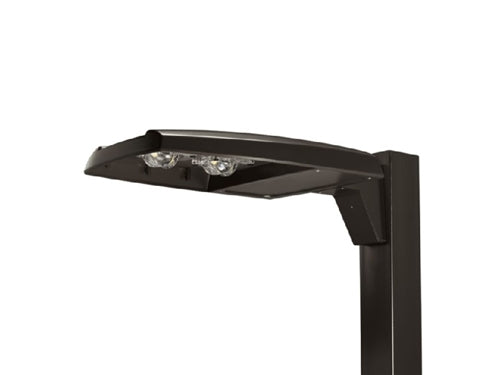

Lumark PRV-C40-D-UNV-T4-SA-BZ Prevail LED Area Light, 2 LEDs, 17,100 Lumens, 0-10V Dimming, 120-277V, Type IV Distribution, QM Standard Versatile Arm Mounting, Bronze

Lumark PRV-C40-D-UNV-T4-SA-BZ Prevail LED Area Light, 2 LEDs, 17,100 Lumens, 0-10V Dimming, 120-277V, Type IV Distribution, QM Standard Versatile Arm Mounting, Bronze

Price: $909.56
Price: $909.56

MODEL: Lumark-PRV-1290

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Construction
  • Single-piece die-cast aluminum housing
  • Tethered die-cast aluminum door
Optics
  • Dark Sky Approved (3000K CCT and warmer only)
  • Precision molded polycarbonate optics
Electrical
  • -40 degrees C minimum operating temperature
  • 40 degrees C maximum operating temperature
  • >.9 power factor
  • <20% total harmonic distortion
  • Class 1 electronic drivers have expected life of 100,000 hours with <1% failure rate
  • 0-10V dimming driver is standard with leads external to the fixture
  • Standard MOV surge protective device designed to withstand 10kV of transient line surge
Mounting
  • Versatile, patented, standard mount arm accommodates multiple drill patterns ranging from 1-1/2" to 4-7/8" (Type M drilling recommended for new installations)
  • A knock-out on the standard mounting arm enables round pole mounting
  • Adjustable pole and wall mount arms adjust in 5 degrees increments from 0 degrees to 60 degrees; Downward facing orientation only (Type N drilling required for ADJA mount)
  • Adjustable slipfitter arm adjusts in 5 degrees increments from -5 degrees to 85 degrees; Downward facing orientation only
  • Adjustable Arms: 1.5G vibration rated
  • Prevail and Prevail Petite: 3G vibration rated
  • Prevail XL Mast Arm: 3G vibration rated
  • Prevail XL Standard Arm: 1.5G vibration rated
Typical Applications
  • Parking lots, Walkways, Roadways and Building Areas
Finish
  • Five-stage super TGIC polyester powder coat paint, 2.5 mil nominal thickness
  • Finish is compliant to 3,000 hour salt spray standard (per ASTM B117)
Shipping Data
  • Prevail Petite: 18 lbs. (7.94 kgs.)
  • Prevail: 20 lbs. (9.09 kgs.)
  • Prevail XL: 45 lbs. (20.41 kgs.)
  • Prevail Maxx: 49 lbs. (22.23 kgs.)
Warranty
  • Five year limited warranty
