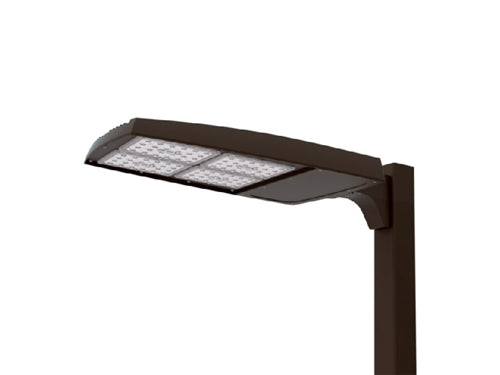

Lumark PRV-XL-PA3B-730-U-T2R-SA-BZ Prevail Discrete LED Area Light, 3 Panels, 950mA, 70 CRI, 3000K, 120-277V, Type II Roadway Distribution, Standard Arm, Bronze

Price: $1,386.00

MODEL: Lumark-PRV-1355

Usually Ships in 3-5 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT SPECIFICATIONS
Construction

Optics

Electrical

-40 degreesC minimum operating temperature
40 degreesC maximum operating temperature
>.9 power factor
<20% total harmonic distortion
Class 1 electronic drivers have expected life of 100,000 hours with <1% failure rate
0-10V dimming driver is standard with leads external to the fixture
Standard MOV surge protective device designed to withstand 10kV of transient line surge

Mounting

Versatile, patented, standard mount arm accommodates multiple drill patterns ranging from 1-1/2" to 4-7/8" (Type M drilling recommended for new installations)
A knock-out on the standard mounting arm enables round pole mounting
Adjustable pole and wall mount arms adjust in 5 degrees increments from 0 degree to 60 degrees; Downward facing orientation only (Type N drilling required for ADJA mount)
Adjustable slipfitter arm adjusts in 5 degrees increments from -5 degrees to 85 degrees; Downward facing orientation only
Prevail and Prevail Petite: 3G vibration rated (all arms)
Prevail XL Mast Arm: 3G vibration rated
Prevail XL Standard Arm: 1.5G vibration rated
Adjustable Arms: 1.5G vibration rated

Finish

Typical Applications

Shipping Data

Warranty
