• Lumark RPGC25-MS/DIM-L20 60WParking Garage and Canopy Light, Motion Sensor for Dimming Operation, 9' - 20' Mounting Height, 120-277V
  • Lumark RPGC25-MS/DIM-L20 60WParking Garage and Canopy Light, Motion Sensor for Dimming Operation, 9' - 20' Mounting Height, 120-277V
1 2

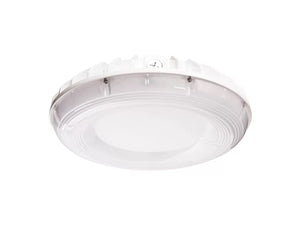

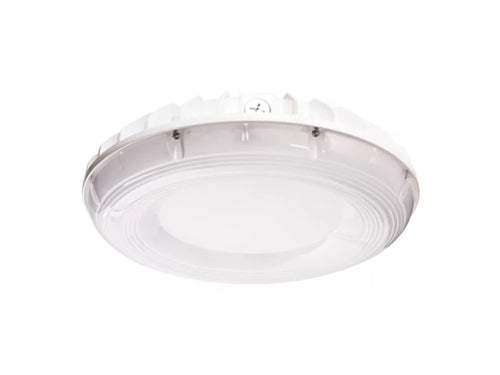

Lumark RPGC25-MS/DIM-L20 60WParking Garage and Canopy Light, Motion Sensor for Dimming Operation, 9' - 20' Mounting Height, 120-277V

Lumark RPGC25-MS/DIM-L20 60WParking Garage and Canopy Light, Motion Sensor for Dimming Operation, 9' - 20' Mounting Height, 120-277V

Price: $1,000.00
Price: $1,000.00

MODEL: Lumark-RPGC25S-1321

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Construction
  • Heavy-duty, low-profile die-cast aluminum housing
  • Integrated universal mounting plate which mounts directly to 4" round, octagonal, and square junction boxes
  • Quick-mount bracket system allows for free hand wiring suitable for mounting to a surface mounted j-box or to a rigid or free swinging pendant (supplied by others)
Optics
  • Round drop lens constructed of polycarbonate material with refractive features built in to maximize area coverage
  • Standard 4000K CCT and min 70 CRI
  • Drop lens provides light above the 90 degree plane for some ambient uplighting
Electrical
  • Maintains greater than 90% of initial light output after 50,000 hours of operation
  • Integral LED electronic driver incorporates surge protection and 0-10V dimming
  • 120V-277V, 50/60 Hz or 347V/60 Hz
  • Integrated selectable lumen switch allows installer to easily toggle between three different lumen outputs; Factory preset is max output
Typical Applications
  • Parking garages, canopy, stairwells and covered walkways
Shipping Data
  • Approximate net weight: 7.6 lbs. (3.4 kgs.)
Warranty
  • Five year limited warranty.
