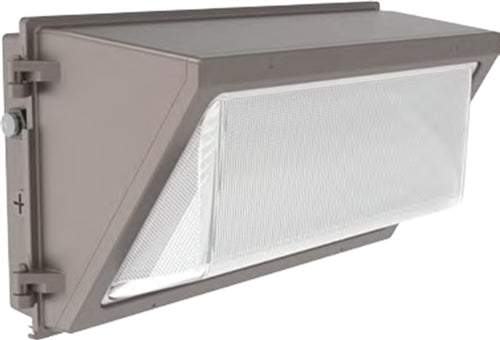

Lumark WPLLED38S 120-150W Large LED Wall Pack, 17300-21000 Lumens, Selectable CCT 3000/3500/4000/5000/6500K, 80 CRI, 120-347V, 50/60Hz, Selectable Dusk-to-Dawn via Button-Type Photocontrol

Name: Lumark WPLLED38S 120-150W Large LED Wall Pack, 17300-21000 Lumens, Selectable CCT 3000/3500/4000/5000/6500K, 80 CRI, 120-347V, 50/60Hz, Selectable Dusk-to-Dawn via Button-Type Photocontrol
Brand: Halo Lighting
SKU: Lumark-WPLLED38S
Price: 274.71 USD
Availability: InStock

Price: $274.71

MODEL: Lumark-WPLLED38S

Add To Wishlist

Ordering a Large Quantity? Request a quote

View full details

description

PRODUCT FAMILY SPECIFICATIONS
Construction

Die-cast aluminum housing with hinged, removable die-cast aluminum door
Four 1/2” threaded conduit entry point

Optics

Impact and heat resistant borosilicate refractive glass lens to withstand IK07

Electrical

Selectable SKUs offer 4 wattages selections and 5 CCTs (3000, 3500, 4000, 5000 & 6500K). Default settings are highest wattage and 4000K CCT.
Operating temperature range: -40°C to +40°C
Power factor >0.9
<20% THD (Total Harmonic Distortion)
Class 2 driver incorporates internal fusing designed to withstand ±6kV surge
0-10V dimming driver standard

Controls

Selectable configurations supply internal toggle switches to adjust luminaire CCT and lumens.
Selectable luminaires will ship default at 4000K CCT and maximum lumen output.
Selectable configurations also provide an integrated button-type photocontrol for dusk-to-dawn operation. The photocontrol is also field-adjustable via toggles switches to either enable, disable, or modify the settings. The photocontrol ships enabled.

Typical Applications
