Luminis SC850 L1L75 40K 120 VWD WHT 77W Scopo LED Wall Light, 7440 Lumens, 4000K, 120V, Very Wide Optic, Snow White
Luminis SC850 L1L75 40K 120 VWD WHT 77W Scopo LED Wall Light, 7440 Lumens, 4000K, 120V, Very Wide Optic, Snow White
Regular price
Price:
$1,953.68
Regular price
Price:
Sale price
$1,953.68
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
MATERIALS
MATERIALS
Scopo is made of corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1%. The main housing is made of seamless extruded aluminum, with an integrally sealed LED light module designed for optimal heat dissipation, and lighting performance. The back cast aluminum cover includes ventilation slots allowing air circulation and cooling of assembly.
ELECTRICAL DRIVER
120V/277V driver is 0-10V dimming-ready (min. dim to 10%) with 120- 277 multi-volt compatibility (50-60Hz), operating temperature range of -40°C/-40°F to 55°C/131°F, output over voltage protection, output over current protection and output short circuit protection with autorecovery. 347V/480V driver is 0-10V dimming ready (min. dim to 10%) with operating temperature range of -40°C/-40°F to 55°C/131°F, over current and output short circuit protection.
LED LIGHT ENGINE
Offered in 2700K, 3000K, 3500K & 4000K / 80CRI. 70% LED lumen maintenance at 60,000 hours (L70/B50) based on IESNA LM-80-08 LED extrapolated life, calculated per IESNA TM-21-21. Optional true amber LED for turtle sensitive areas.Wavelengths: 585nm to 597nm.
FINISH
Five-stage preparation process including preheating of cast aluminum parts for air extraction, and an environmentally friendly alloy sealant. Polyester powder coating is applied through an electrostatic process and oven cured for long term finish.
CERTIFICATION
UL Certified to Canadian and U.S. safety standards. Certified for use in wet locations. Rated IP65. Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25°C. Actual performance may differ as a result of end-user environment and application.
WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed.
Complete warranty terms located at: https://www.acuitybrands.com/ support/warranty/terms-and-conditions
MOUNTING

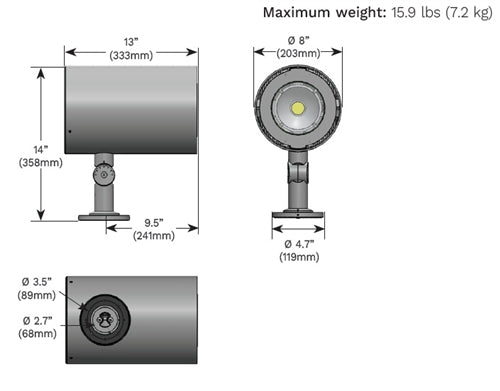

The mounting plate is designed to fit on a 4” (102mm) round electrical box using 3.5” (89mm) C/C four mounting holes.
ELECTRICAL DRIVER
120V/277V driver is 0-10V dimming-ready (min. dim to 10%) with 120- 277 multi-volt compatibility (50-60Hz), operating temperature range of -40°C/-40°F to 55°C/131°F, output over voltage protection, output over current protection and output short circuit protection with autorecovery. 347V/480V driver is 0-10V dimming ready (min. dim to 10%) with operating temperature range of -40°C/-40°F to 55°C/131°F, over current and output short circuit protection.
LED LIGHT ENGINE
Offered in 2700K, 3000K, 3500K & 4000K / 80CRI. 70% LED lumen maintenance at 60,000 hours (L70/B50) based on IESNA LM-80-08 LED extrapolated life, calculated per IESNA TM-21-21. Optional true amber LED for turtle sensitive areas.Wavelengths: 585nm to 597nm.
FINISH
Five-stage preparation process including preheating of cast aluminum parts for air extraction, and an environmentally friendly alloy sealant. Polyester powder coating is applied through an electrostatic process and oven cured for long term finish.
CERTIFICATION
UL Certified to Canadian and U.S. safety standards. Certified for use in wet locations. Rated IP65. Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25°C. Actual performance may differ as a result of end-user environment and application.
WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed.
Complete warranty terms located at: https://www.acuitybrands.com/ support/warranty/terms-and-conditions
MOUNTING
The mounting plate is designed to fit on a 4” (102mm) round electrical box using 3.5” (89mm) C/C four mounting holes.
