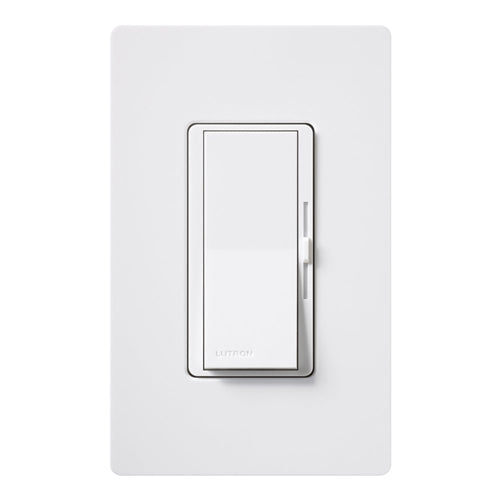

Lutron DVRP-253P-WH Diva 250W Dimmable LED or CFL, 500W Incandescent/Halogen, 500W ELVWith Halogen, Single Pole / 3-Way Reverse-Phase Dimmer inWhite

Features & Benefits

• Matching Wallplate Sold Separately
• On / off paddle switch with a linear-slide dimmer for a standard designer wallplate opening
• UL Listed to control:
  • Dimmable LED with integrated driver
  • Dimmable compact fluorescent (CFL) with integrated ballast
  • Incandescent / Halogen
  • Electronic Low-Voltage (ELV) transformers with halogen or LED (see Lutron App Note #559)
• Reverse-phase type control. Neutral wire connection is required in the wallbox.
• 100% factory tested.

Model #	DVRP-253P-WH
Finish	Gloss Finish
Color	White
Type	Single Pole / 3-Way Reverse-Phase Dimmer
Maximum Wattage	250 W Dimmable LED / CFL 500 W Incandescent/Halogen 500 W ELV with Halogen Mixed bulb type per Multigang and Mixed Bulb Type Ratings table (see PDF Specification on page 3)
Rating	120 VAC
