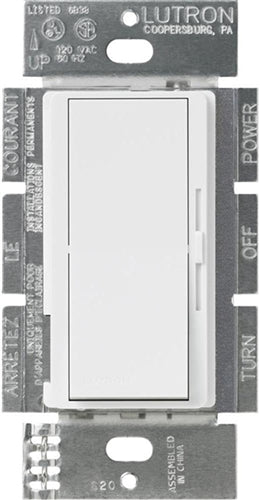

Lutron DVSTV-453P-WH Diva 450W CFL or LED 3.75 A 120 V / 1.62A 277V Single Pole / 3-Way Dimmer in White
Lutron DVSTV-453P-WH Diva 450W CFL or LED 3.75 A 120 V / 1.62A 277V Single Pole / 3-Way Dimmer in White
Regular price
Price:
$60.39
Regular price
Price:
Sale price
$60.39
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Regulatory Approvals
Operating Voltage 120–277 V~ 50/60 Hz
Output Ratings
Regulatory Approvals
- cULus Listed
- NOM
Operating Voltage 120–277 V~ 50/60 Hz
Output Ratings
- Switch rating of 450 W.
- 0-10 V control link for 50 mA maximum output (sink only).
- 0-10 V control link is Class 1.
- Controls up to 25 ballasts or drivers (IEC 60929 Annex E.2 requires the ballast/driver to limit the current draw to 2.0 mA maximum).
- Power pack cannot be used with DVSTV- models.
- Works with all ballasts and drivers that provide a current source compliant to IEC 60629 Annex E.2, and whose inrush current does not exceed NEMA410 standards for electronic ballast/driver loads of 8 A steady state current.
- Adjustable high-end and low-end trim for optimal dimming performance.
- Power failure memory: should power be interrupted, the control will return to its previously set level prior to the interruption when power is restored.
- Captive linear slider.
- Precise color matching.
- For indoor use only.
- Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing.
- No derating required if ganged.
- Night light not available.
- Always consult local wiring codes
