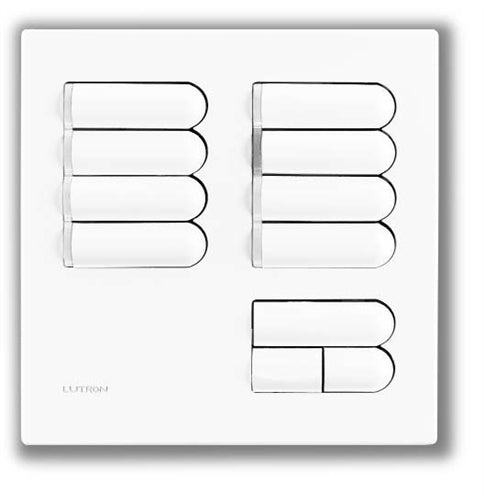

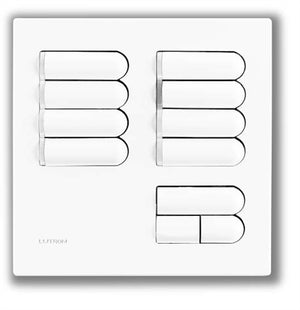

Lutron EGRX-8S-BC European 8-Scene Wallstation with Off and Raise/Lower for Grafik Eye 3000 System in Bright Chrome

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.

GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

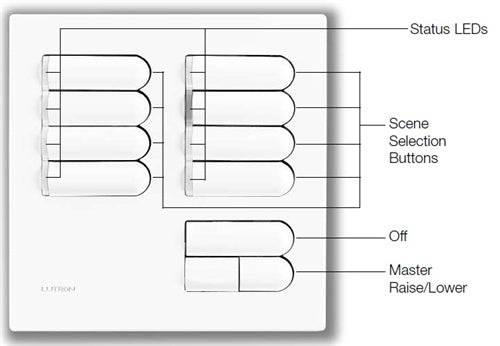

• Used to select and adjust scenes in GRAFIK Eye Control Units.
• Scene selection functionality can be selected in the field.
• Status LEDs indicate which scene is selected.
• Off button turns all lights off.
• Master raise/lower button brightens or dims all lighting in the selected scene.
• Works with GRAFIK Eye 3000 and 4000 Series Control Units.
• Selects scenes in just one Control Unit or a group of up to eight Control Units.

• Mounts in UK/German wallbox. In the U.S., Lutron supplies a UK wallbox (P/N 241-683) with the Wallstation.


Entire-Room Controls

Model #	EGRX-8S-BC
Color	Bright Chrome
Type	8-Scene with Off and Raise/Lower Wallstation
Style	European Style
Power Input	Low-voltage type Class 2 (PELV), 12/24 V Direct Current
Communications and Capacities	Low-voltage type Class 2 (PELV) wiring connects Wallstations to Control Units and other components. Up to 8 Control Units and 16 total Wallstations and/or Control Interfaces may be connected for a total of 24 control points.
Terminals	Accept up to two #18 AWG (1.0mm2) typical.
Mounting	UK or German wallbox.
