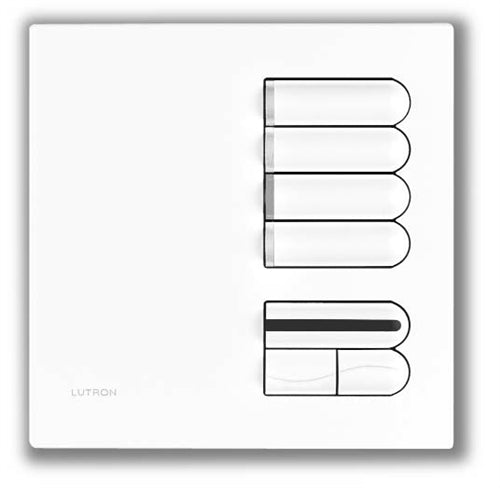

Lutron EGRX-PRO-SC European 4-Scene Wallstation with Off, Raise/Lower and IR Receiver Programming for Grafik Eye 3000 System in Satin Chrome

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.

GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

• Allows the user to set scenes for a complete system of GRX-3500 or GRX-4500 units using a PDA at the Wallstation.
• When used with a PALM PDA and available software, the user is able to:
• Select scenes 1-16 and off in any GRX unit in the system.
• Raise or lower any zone in the system.
• Save the new zone levels as the current scene.
• For more information on the software required contact Lutron or visit www.lutron.com.
• When used without a PALM PDA, the wallstation offers the standard functionality and benefits of the EGRX-4S-IR wallstation.
• Scene selection functionality can be selected in the field.

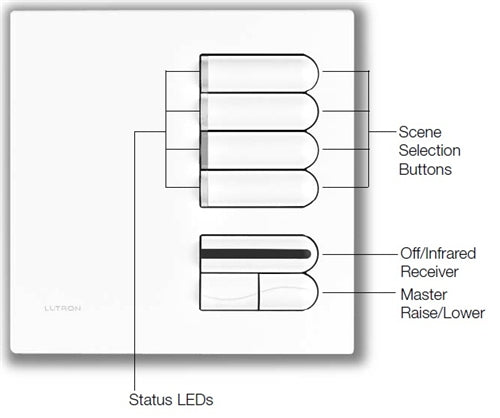

• Status LEDs indicate which scene is selected.
• Off button turns all lights off.
• Infrared receiver allows a GRX-IT 4-Scene or GRX-8IT 8-Scene Wireless Remote Control to select and adjust scenes.
• Master raise/lower button brightens or dims all lighting in the selected scene.

• Mounts in UK/German wallbox. In the U.S., Lutron supplies a UK wallbox (P/N 241-683) with the Wallstation.


Entire-Room Controls

Model #	EGRX-PRO-SC
Color	Satin Chrome
Type	4-Scene with Off, Raise/Lower, and Infrared Receiver Programming Wallstation
Style	European Style
Power Input	Low-voltage type Class 2 (PELV), 12/24 V Direct Current
Communications and Capacities	Low-voltage type Class 2 (PELV) wiring connects Wallstations to Control Units and other components. Up to 8 Control Units and 16 total Wallstations and/or Control Interfaces may be connected for a total of 24 control points.
Terminals	Accept up to two #18 AWG (1.0mm2) typical.
Mounting	UK or German wallbox.
