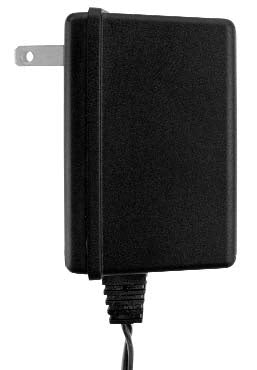

Lutron GRX-12VDC Grafik Eye 12 VDC Plug-In Class 2 Transformer

Description

Use this external 12VDC power supply whenever more than three Wallstations or Control Interfaces must be powered from a single Control Unit.

• Must be Class 2/PELV rated.
• Must be rated for at least 50mA per Wallstation on the link.
• Must be a regulated supply.

Model #	GRX-12VDC
Type	Accessories
Input Power	120V, 60 Hz.
Infrared Frequency	40kHz.
Output Power	Regulated 12VDC. Rated for 800mA, 9.5W. Provides power for up to 16 Wallstations.
Wiring	Connect the +12VDC wire from the power supply to terminal 2 on all Wallstations and Control Interfaces. Do not connect this wire to any Control Units. Connect the COMMON wire to terminal 1 on all Wallstations, Control Interfaces, and Control Units. Keep the distance from the external power supply and the sixteenth Wallstation less than 300 feet (90m). With fewer Wallstations, the allowable maximum distance may be greater - consult Lutron Tech Support.
