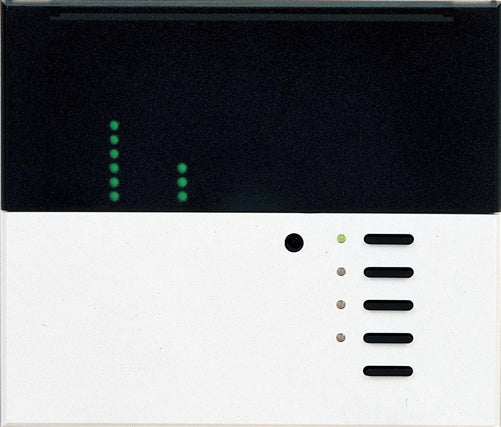

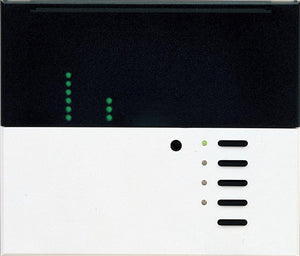

Lutron GRX-3102-A-SW Grafik Eye Entire Room Control, 2 Zone Control Unit, 120V 800W/VA per Zone, 1200W/VA per Control Unit with Opaque Cover, Snow

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.

Features & Benefits

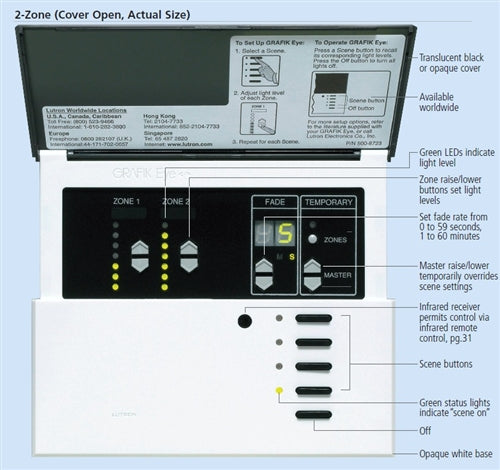

• Provides pushbutton recall of four preset lighting scenes, plus Off.
• Allows setup of lighting scenes using buttons on the Control Unit.
• Controls many light source types directly, and others using power interfaces.
• Provides lockout options to prevent accidental changes.
• Includes built-in infrared receiver for operation with an optional remote control.

Model #	GRX-3102-A-GR
Color	Snow
Type	Grafik Eye 3000 Series Control Units
Set-Up Method	Standard via front panel
Number of Zones	2
Cover	Opaque (Cover and base will match)
Input Voltage	120 V Single Feed
Maximum Capacity	1200W/VA
Lighting Sources/Load Types	Incandescent, Magnetic Low Voltage, Neon/Cold Cathode, Fluorescent with Tu-Wire® Dimming Ballast
Communications and Capacities	Low-voltage type Class 2 (PELV) wiring connects Control Units, Wallstations, and Control Interfaces: Up to 8 Control Units may be linked to control up to 48 zones. Up to 16 total Wallstations and Control Interfaces may be added for a total of 24 control points.
