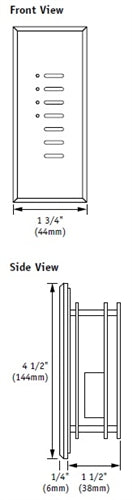

Lutron GRX-4S-DW-SC Grafik Eye Architrave 7-Button 4-Scene Slim Button Door Jamb Wallstation with Off and Raise/Lower in Satin Chrome

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.

GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

• Fits into door jamb — occupants can adjust lighting as they enter a room.
• Scene selection buttons activate scenes 1 to 4, 5 to 8, 9 to 12, or 13 to 16 depending on how you set DIP switches 5 and 6.
• Status LEDs show which scene is selected.
• Off button turns all lights off.
• Raise and lower buttons brighten or dim all lighting in the selected scene.
• Works with GRX-3000 and GRX-4000 Control Units. Can be set up to select scenes in just one Control Unit or a group of up to eight Control Units.
• Mounts in Lutron-supplied wallbox P/N 241-399.


Entire-Room Controls

Model #	GRX-4S-DW-SC
Color	Satin Chrome
Type	7-Button ARCHITRAVETM Door Jamb Wallstation
Style	European Style
Operating Voltage	Low-voltage type Class 2(PELV), 12VDC to 24VFW.
Communications and Capacities	Low-voltage type Class 2 (PELV) wiring connects Wallstations to Control Units and other components. You can link up to 8 Control Units and up to 16 total Wallstations and/or Control Interfaces for a total of 24 control points.
Terminals	Accept up to two #18 AWG (1.0mm2) typical.
