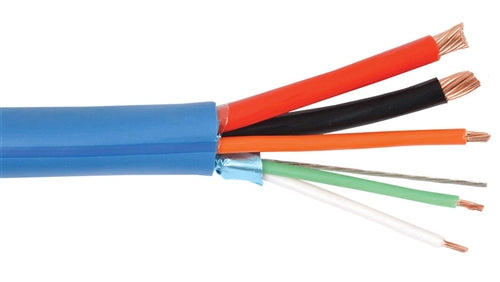

Lutron GRX-CBL-346S-500 Grafik Eye 500 ft Low-Voltage 4 Copper Cable for Class 2 Applications
Lutron GRX-CBL-346S-500 Grafik Eye 500 ft Low-Voltage 4 Copper Cable for Class 2 Applications
Regular price
Price:
$379.60
Regular price
Price:
Sale price
$379.60
Unit price
per
MODEL: Lutron-GRX-CBL-346S-500
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
Description
Non-Plenum rated cable for use with the following Lutron systems:- GRAFIK Eye® 3000
- GRAFIK Eye® QS
- Energi Savr NodeTM
Features & Benefits
- Listed as type CL3R or CMR cULus.
- Available in 500 ft (150 m) spool.
- Five conductors:
- Common – 18 AWG (0.75 mm2)
- Power – 18 AWG (0.75 mm2)
- MUX Data – 22 AWG (0.25 mm2) and MUX Data – 22 AWG (0.25 mm2) -- Twisted wire pair
- Drain Wire – 24 AWG (0.2 mm2)
- Total Outer Jacket Diameter: 0.21 in (5.3 mm).
- 300 V Rated.
- PVC sheath, 75 °C rated.
- UL Listed.
- Rated FT4.
- cULus or CSA Listed.
- Capacitance of 22 AWG (0.25 mm2) Twisted
Wire Pair:- Conductor to shield: 48 pf/ft ma
- Conductor to Conductor: 25 pf/ft max
| Model # | GRX-CBL-346S-500 |
| Type | Cable Accessories |
