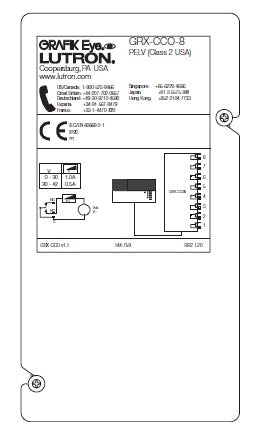

Lutron GRX-CCO-8 Grafik Eye 3000 Contact Closure Output Interface

Description

Integrates control of third party motorized window treatments or A/V equipment with GRAFIK Eye 3500 and 4500 Series Control Units.
The GRX-CCO-8 provides eight dry contact closure outputs.
Control equipment through GRAFIK Eye Control Unit scenes or GRAFIK Eye Control Unit zones.
Scene Control: A single GRX-CCO-8 output is closed when its corresponding GRAFIK Eye Control Unit scene is selected.
Zone Control: Outputs are assigned to GRAFIK Eye Control Unit zones and opened or closed based on the zone intensity.

Features & Benefits

• The GRX-CCO-8 provides both normally open (NO) and normally closed (NC) contacts.
• The GRX-CCO-8 may be set to momentary or maintained outputs.
• In Scene Control, the outputs may be associated with different GRAFIK Eye Control Unit scene ranges.
  Example: GRX-CCO-8 outputs may be associated with GRAFIK Eye Control Unit scenes 1-8.
• In Zone Control, the outputs may be set as individual outputs or motorized window treatment channels.
• Motorized window treatment channels may be set to have OPEN and CLOSE outputs or OPEN, STOP, and CLOSE outputs.
• Manual override buttons allow the testing of the system.


Model #	GRX-CCO-8
Type	Contact Interfaces
Power Input	Low-voltage type Class 2 (PELV), 12/24 V Direct Current
System Communications and Capacity	Class 2 (PELV) wiring connects GRX-CCO-8 to GRAFIK Eye Control Units and other components. GRX-CCO-8 occupies one of eight Shade Control addresses on the GRAFIK Eye Control Link. Works with both GRAFIK Eye 3000 and GRAFIK Eye 4000 Series Control Units.
