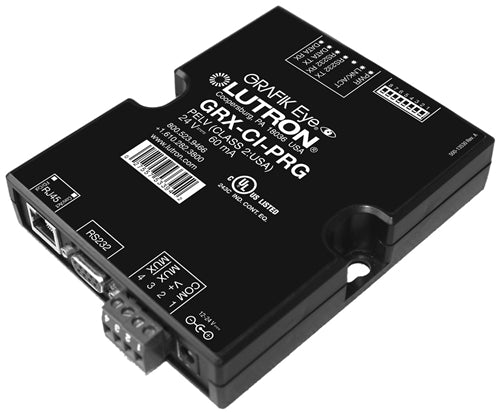

Lutron GRX-CI-PRG Grafik Eye 3000 Astronomic Timeclock and Programmer Interface

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.

GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

• Integrates a GRAFIK Eye lighting control system with a PC or other digital equipment that supports RS232 and TCP/IP communication.
• Provides a basic serial string command set that allows a PC to monitor and control lighting.
• Built-in astronomic timeclock provides ability to schedule lighting events.
  Example: Lobby lights turn on to scene 1 at 7:30 a.m. or 10 minutes after sunrise.
• Enables use of a PC to set up GRX-3500 and GRX-4500 control units.
• Comes with easy-to-use, “point-and-click”
  Windows®-compatible LIAISONTM software for scheduling the astronomic timeclock and using the programmer Interface.
• Functionality is selected using DIP switches.
• Operates with or without a PC connected.
• May be programmed to control any combination of one to eight GRAFIK Eye 3000 or 4000 series control units.
• GRX-3100, GRX-4100, and GXI-3100 control units may utilize the astronomic timeclock function of the GRX-CI-PRG.
• GRX-3500, GRX-4500, and GXI-3500 control units may utilize all functions of the GRX-CI-PRG.


Model #	GRX-CI-PRG
Type	Control Interfaces
Power Input	Low-voltage type Class 2 (PELV), 12/24 V Direct Current
Basic Command Set	Monitoring: Scene selection and scene status updates. Control: Scene selection, scene lockout, sequencing, zone lockout, zone raise/lower.
