Lutron GRX-CIR-WH Grafik Eye 3000 Ceiling mount infrared receiver

Description

Lets occupants use a hand-held Wireless Remote Control to adjust lighting when Control Unit(s) are located in a different room or area. Just aim a hand-held Remote at the Ceiling Receiver and click!

Features & Benefits

• GRX-IT 4-Scene Wireless Remote Control selects scenes 1 to 4, 5 to 8, 9 to 12, or 13 to 16 plus off.
• GRX-8IT 8-Scene Wireless Remote Control selects scenes 1 to 8, 5 to 12, 9 to 16, or 13 to 16/1 to 4 plus off.
• Raise/lower on GRX-IT and GRX-8IT Wireless Remote Controls brightens or dims the selected scene.

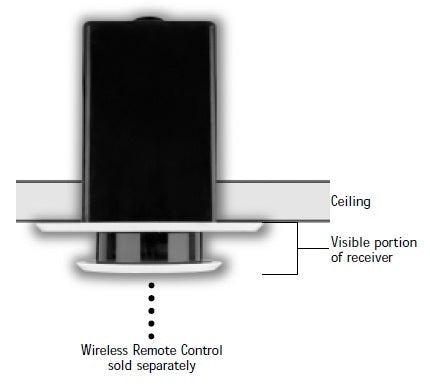

• The GRX-CIR Ceiling Receiver
  • Has a 360°, 50-foot (15m) line-of-sight reception range.
  • Mounts in metal collar provided by Lutron.
  • Works with GRX-3000 and GRX-4000 Control Units. Can be set up to select scenes in just one Control Unit or a group of up to eight Control Units.
  • Counts as one of 16 maximum Wallstations and/or Control Interfaces.


Model #	GRX-CIR
Type	Ceiling-Mounted Infrared Receiver
Power Input	Low-voltage type Class 2 (PELV), 12/24 V Direct Current
System Communications and Capacity	Low-voltage type Class 2 (PELV) wiring connects the Ceiling Receiver to Control Units and other components. You can link up to 8 Control Units and up to 16 total Wallstations and/or Control Interfaces for a total of 24 control points.
